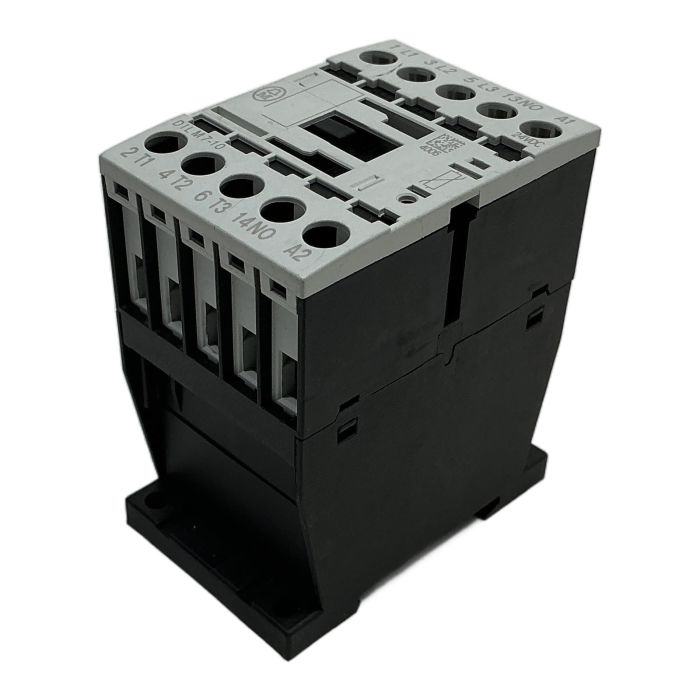

Moeller (Eaton) DILM7-10 3-Pole Contactor

Description

The Moeller DILM7-10 is a high-performance 3-pole contactor, now part of the Eaton family of industrial control products. It is designed for switching AC motors and is rated for 3 kW at 400V (AC-3). This model features a 24V DC coil, making it ideal for integration into modern PLC-based control systems. An integrated normally open (NO) auxiliary contact provides essential feedback for control logic. Its compact design saves valuable panel space while ensuring reliable operation in demanding industrial applications.

Specifications

• Manufacturer: Moeller (Eaton)
• Type: DILM7-10(24VDC)
• Part Number: 276550
• Coil Voltage: 24V DC
• Number of Poles: 3
• Rated Power (AC-3, 400V): 3 kW
• Rated Operational Current (AC-1): 20 A
• Auxiliary Contacts: 1 Normally Open (NO)
• Series: xStart

Application

This contactor is widely used for motor control in applications such as conveyor systems, pumps, fans, and other industrial machinery. It's also suitable for switching non-inductive or slightly inductive loads.

Country of Origin

Made by Moeller in Germany.

CO2 Impact

Choosing this pre-owned contactor over a new one avoids approximately 8.8 kg of CO2 emissions, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
Can I add more auxiliary contacts to this DILM7-10 contactor?
Answer

Yes, this contactor is part of the Eaton xStart series, which is modular. You can clip on additional front-mounted or side-mounted auxiliary contact blocks (like the DILM12-XHI series) to expand its functionality.

The Eaton DILM series is known for its durability. The mechanical lifespan is typically rated for 10 million operations, while the electrical lifespan depends on the load category (e.g., AC-3 vs AC-1) and current, but can be expected to be in the hundreds of thousands to millions of cycles under specified conditions.

No, for most standard DC coils in the DILM series, they are not polarized. You can connect the positive and negative DC supply to terminals A1 and A2 in either orientation. However, if a suppressor circuit is integrated or added externally, polarity might become important. Always check the datasheet for the specific part number.
