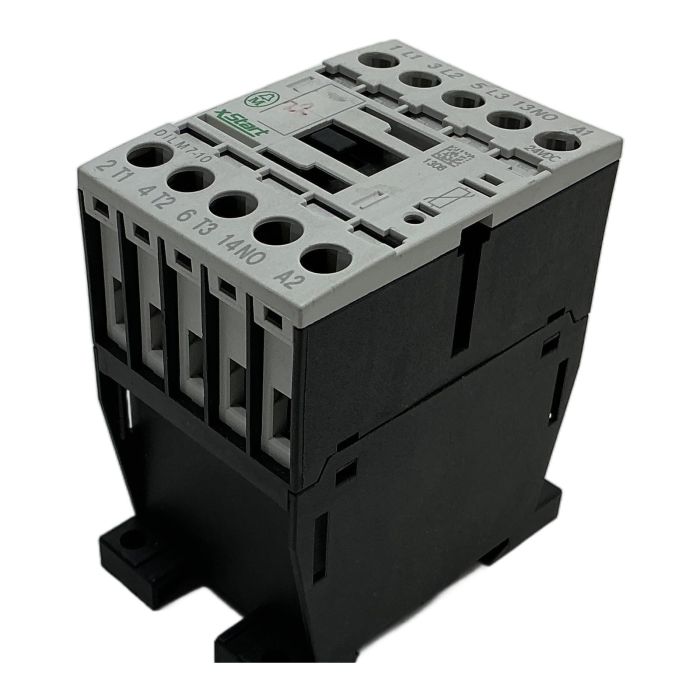

Moeller (Eaton) DILM7-10(24VDC) Contactor

Description

The DILM7-10(24VDC) from Moeller, part of Eaton's renowned xStart series, is a high-performance 3-pole contactor designed for motor control and power switching applications. It operates with a 24V DC control voltage and features an integrated normally open auxiliary contact. This contactor is engineered for reliability and a long mechanical and electrical lifespan, making it an ideal choice for industrial control panels and automation systems.

Specifications

• Manufacturer: Moeller (Eaton)
• Type: DILM7-10(24VDC)
• Article Number: 276527
• Control Voltage: 24V DC
• Number of Poles: 3
• Auxiliary Contacts: 1 Normally Open (1NO)
• Rated Operational Power (AC-3, 400V): 3 kW
• Conventional thermal current (AC-1, Ith): 20 A
• Series: xStart

Application

This contactor is suitable for switching AC motors (utilization category AC-3), as well as resistive loads (AC-1). Its compact design makes it ideal for use in control cabinets where space is at a premium. Common applications include motor starters, heating controls, and lighting systems.

Country of Origin

This product is marked as made in Germany.

CO2 Impact

Choosing a pre-owned component like this DILM7-10 contactor prevents the emission of approximately 8.8 kg of CO2 compared to manufacturing a new one. This saving is equivalent to driving 44 kilometers in a standard passenger car.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The AC-1 rating (20 A) is for non-inductive or slightly inductive loads, like resistance heaters. The AC-3 rating (3 kW at 400V) is specifically for switching squirrel-cage induction motors during starting and stopping, which involves higher inrush currents.

Yes, the DILM series is modular. You can mount additional front-mounted auxiliary contact blocks (like the DILM12-XHI series) to expand the number of NO or NC contacts as needed for your control circuit.

This contactor is designed for direct mounting of the ZB12 series of thermal overload relays from Eaton (Moeller). You must select the specific ZB12 model based on the full-load current of your motor.
