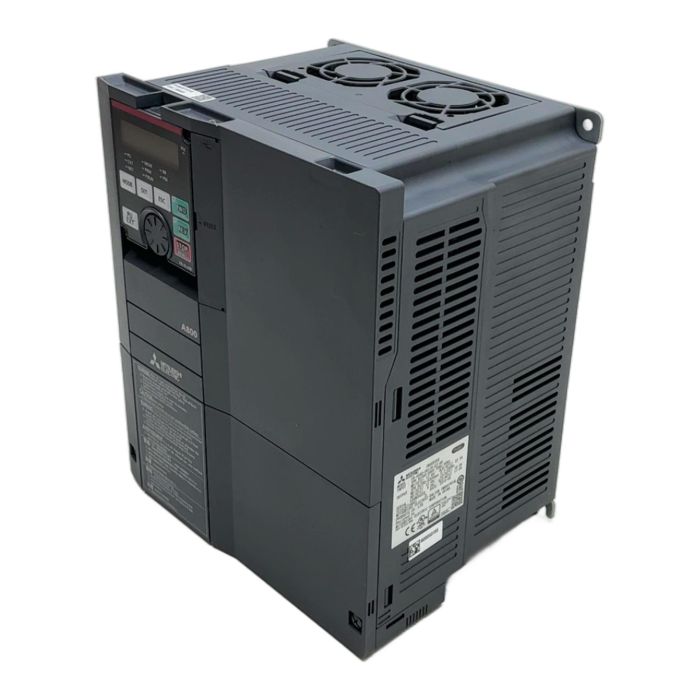

Mitsubishi Electric FR-A800 Series Frequency Inverter

Description

The FR-A840-00170-E2-60 is a high-performance frequency inverter from Mitsubishi Electric, part of the advanced FR-A800 series. Designed for superior drive performance and flexibility, this unit is ideal for controlling three-phase induction and permanent magnet motors in a wide range of industrial applications. It features real sensorless vector control for precise speed and torque, a built-in PLC function for decentralized intelligence, and extensive safety features.

Specifications

• Model: FR-A840-00170-E2-60
• Input Voltage: 3-phase 380 to 500V AC, 50/60Hz
• Output Voltage: 3-phase 380 to 500V AC
• Rated Capacity (Normal Duty, ND): 7.5 kW
• Rated Capacity (Heavy Duty, HD): 4.0 kW
• Rated Current (Normal Duty, ND): 17.4 A
• Rated Current (Heavy Duty, HD): 9.0 A
• Control Method: Real sensorless vector control, Vector control, V/F control
• Built-in braking chopper
• Integrated control panel with digital dial

Label Info

• Manufacturer: Mitsubishi Electric Corporation
• Serial Number: E88NSA028
• Date of Manufacture: 2018-08

Application

This inverter is suitable for applications requiring high torque and precision, such as cranes, extruders, conveyor systems, pumps, and fans in manufacturing and processing industries.

Country of Origin

Made in China.

CO2 Impact

Choosing this tested, pre-owned component avoids the 252 kg of CO2 emissions associated with manufacturing a new one, contributing to a more sustainable industrial ecosystem.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the difference between the ND (Normal Duty) and HD (Heavy Duty) ratings on this drive?

Answer: The ND rating (7.5kW / 17.4A) is for applications with low overloads, like fans and pumps. The HD rating (4.0kW / 9.0A) is for applications requiring high starting torque and frequent overloads, such as cranes and conveyors.

Can this FR-A840 inverter communicate via CC-Link IE Field Basic?

Answer: Yes, the FR-A800 series has an integrated Ethernet port that supports various protocols, including CC-Link IE Field Network Basic, enabling seamless integration with Mitsubishi Electric automation systems.

What is the purpose of the built-in PLC function?

Answer: The integrated PLC allows the drive to perform simple logical operations and control sequences independently, without the need for an external controller. This is ideal for standalone machines or for distributing control logic within a larger system.
