Metal Work 2L01012 Pneumatic Fitting

Description

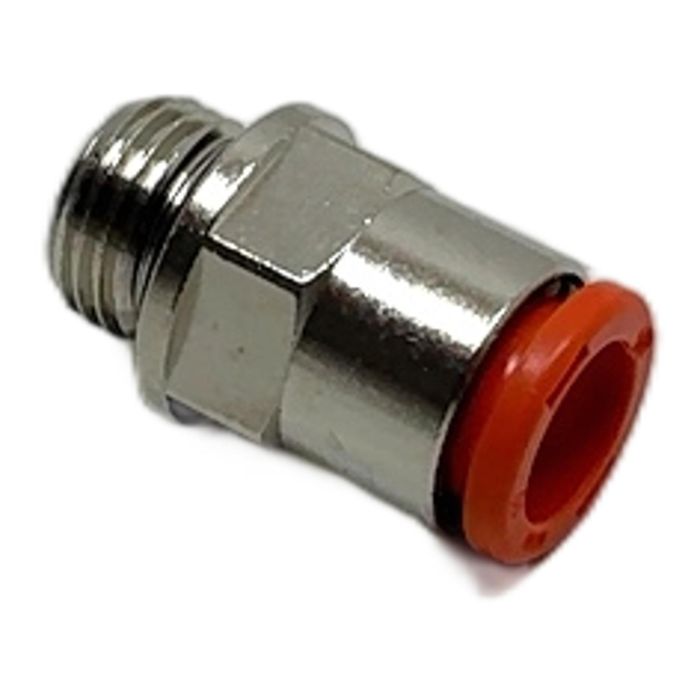

The Metal Work 2L01012 is a straight male push-in fitting from the reliable RL1 series. It is engineered to provide a simple and effective connection between a 10mm OD tube and a 1/4 inch tapered thread port. The nickel-plated brass body ensures durability and resistance to corrosion, making it suitable for demanding industrial environments.

Specifications

• Manufacturer: Metal Work
• Part Number: 2L01012
• Series: RL1
• Type: Straight Male Connector
• Connection 1: Push-in for 10mm OD Tube
• Connection 2: R 1/4 Male Tapered Thread (BSPT)
• Body Material: Nickel-plated Brass
• Maximum Operating Pressure: 16 bar
• Operating Temperature Range: -20 to 80 deg C

Label Info

• Model: 2L01012
• Description: RACC.RL1 10 1/4 CC
• EAN: 8024986123517

Application

This fitting is ideal for use in a variety of pneumatic applications, including industrial automation, robotics, packaging machinery, and compressed air circuits where quick and reliable tubing connections are required.

Country of Origin

Made in Italy.

CO2 Impact

Reusing this component saves an estimated 0.04 kg of CO2 compared to manufacturing a new one. This choice supports sustainable industrial practices by reducing waste and energy consumption.

Availability

Available from stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

These fittings are compatible with a range of tubing materials, including Polyamide (PA), Polyurethane (PU), and Polyethylene (PE), as long as the outer diameter is 10mm and it has the appropriate wall thickness and hardness.

The R 1/4 thread on the 2L01012 fitting is a tapered thread, specifically British Standard Pipe Taper (BSPT), also known as R-thread. This design creates a seal on the threads themselves, often requiring a sealant for a perfect, leak-free connection.

The Metal Work RL1 series fittings are rated for a maximum operating pressure of 16 bar (232 PSI) and can be used in a temperature range from -20 deg C to +80 deg C (-4 deg F to +176 deg F).
