Merlin Gerin Multi 9 RCBO

Description

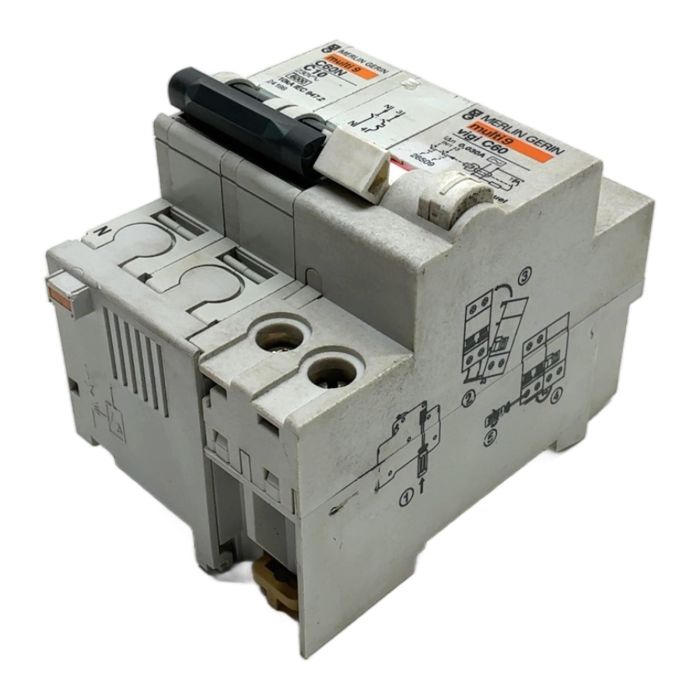

This is a combined Residual Current Circuit Breaker with Overcurrent Protection (RCBO) from the reliable Merlin Gerin Multi 9 series. The unit is composed of a C60N Miniature Circuit Breaker (MCB) and a Vigi C60 add-on Residual Current Device (RCD). It provides a complete protection solution for electrical circuits against overloads, short-circuits, and earth leakage faults. This device is designed for mounting on a standard DIN rail.

Specifications

• Manufacturer: Merlin Gerin (now part of Schneider Electric)
• Series: Multi 9
• Rated Current (In): 10 A
• Rated Residual Current (Idn): 30 mA
• Tripping Curve: C
• Number of Poles: 1P + N
• Rated Voltage (Ue): 230V AC
• Breaking Capacity: 6000 A (IEC 60898), 10 kA (IEC 60947-2)

Label Info

• MCB Part Number: 24188 (Model: C60N)
• RCD Part Number: 26509 (Model: Vigi C60)

Application

Ideal for use in residential, commercial, and industrial final distribution boards where both overcurrent and earth fault protection are required in a compact form factor.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned RCBO instead of a new one prevents the emission of approximately 10 kg of CO2, a significant saving for our planet.

Availability

This is an obsolete item, available as a refurbished part. Perfect for repairs and maintaining existing installations without a complete overhaul. Order now from PLC2Day for expert support and fast delivery.

FAQ

The C60N is a Miniature Circuit Breaker (MCB) providing overcurrent and short-circuit protection. The Vigi C60 is an add-on Residual Current Device (RCD) block that provides earth leakage protection. Together, they function as a single RCBO unit.

The label on the Vigi C60 block does not explicitly state the type, which for older Merlin Gerin devices of this era typically means it is Type AC. It is designed to trip on standard sinusoidal AC earth faults.

Yes, this obsolete Multi 9 RCBO can be replaced by a modern Acti 9 series RCBO, such as the Schneider Electric A9D31610, which offers similar specifications in an updated design. Always ensure compatibility with your existing installation before swapping components.
