Merlin Gerin C60N 2A Single-Pole Miniature Circuit Breaker

Description

This is a C60N series miniature circuit breaker (MCB) from Merlin Gerin, part number 24171. It is a high-performance device designed for the protection of electrical circuits in industrial and commercial buildings. This single-pole breaker offers a 2A current rating and a C-curve tripping characteristic, providing reliable protection against both overloads and short circuits.

Specifications

• Manufacturer: Merlin Gerin (Schneider Electric)
• Series: Multi 9 C60N
• Part Number: 24171
• Current Rating: 2 Amperes
• Number of Poles: 1-Pole (1P)
• Tripping Curve: C
• Rated Voltage: 230/400V AC
• Breaking Capacity (Icn): 6000A according to IEC/EN 60898
• Breaking Capacity (Icu): 10kA according to IEC/EN 60947-2
• Mounting: DIN Rail

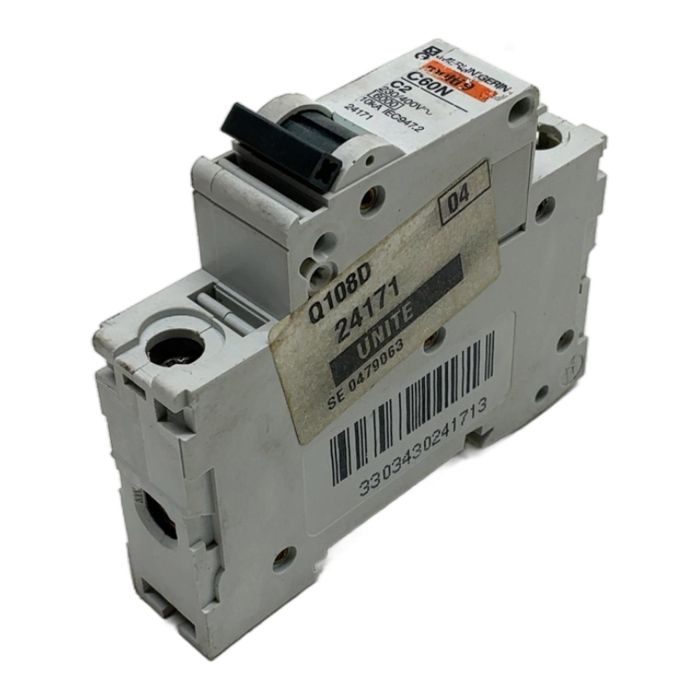

Label Info

• Brand: MERLIN GERIN
• Model: C60N
• Characteristics: C2
• Voltage: 230/400V~
• Breaking Capacity: 6000 / 10kA IEC947.2
• Part Number: 24171
• EAN: 3303430241713

Application

Ideal for protecting circuits with moderate inrush currents, such as general lighting systems, socket outlets, and control circuits in commercial and industrial environments.

Country of Origin

Manufactured in France.

CO2 Impact

By purchasing this reused component, you are helping to avoid the emission of approximately 4 kg of CO2. This saving is equivalent to the CO2 absorbed by a small tree in a year or driving a car for 20 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The curve defines the tripping characteristic. B-curve trips at 3-5 times the rated current and is for resistive loads. C-curve (like this one) trips at 5-10 times, suitable for general-purpose loads with moderate inrush current. D-curve trips at 10-20 times and is for high inrush loads like transformers and motors.

Yes, the C60N series uses the standard DIN rail mounting and has a similar physical profile to the modern Acti9 iC60N series. It is generally compatible with standard DIN rail enclosures and busbars. However, for specific combing busbars or accessories, compatibility should be verified.

The '6000' in a box refers to the ultimate short-circuit breaking capacity (Icn) in Amperes, according to the IEC/EN 60898-1 standard, which is typically for household and similar installations. The 10kA rating refers to the breaking capacity (Icu) under the industrial IEC/EN 60947-2 standard.
