Mennekes AMAXX Power Distribution Box

Description

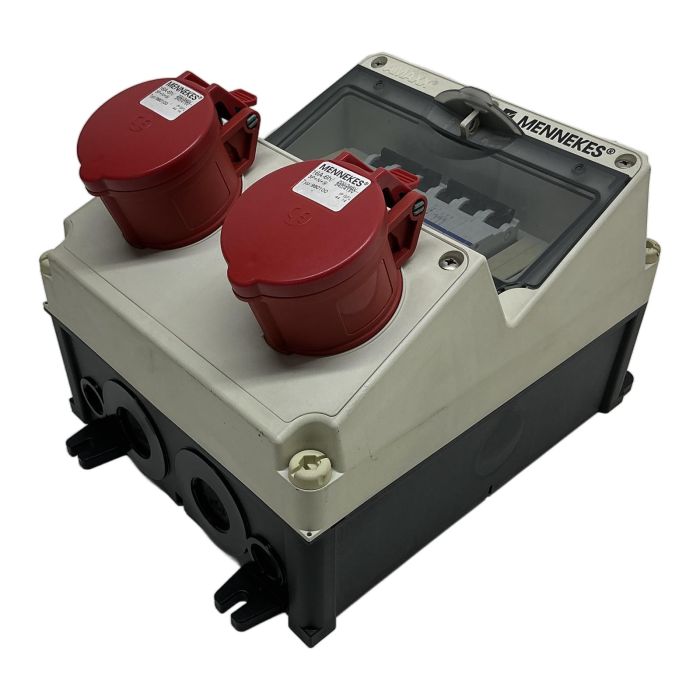

The Mennekes AMAXX 920067 is a highly durable and versatile socket combination box, designed for providing safe and reliable power in demanding industrial environments. This pre-wired unit simplifies installation and ensures compliance with safety standards. It features a rugged enclosure with a transparent, lockable window for easy inspection and access to the internal circuit breakers. This model is equipped with two CEE sockets for three-phase power connections.

Specifications

• Manufacturer: Mennekes
• Series: AMAXX
• Model: 920067
• Input Voltage: 200/346V to 240/415V AC
• Frequency: 50-60 Hz
• Max Input Current: 63 A
• Output Sockets: 2x CEE 16A, 5-pin (3P+N+E), 6h, 400V
• Protection Class: IP44 (splash-proof)
• Housing Material: Plastic

Label Info

• Typ: 920067
• Sicherung/Fuse: 63 A
• Spannung/Voltage: 200/346V - 240/415V
• Standard: IEC 60439-1

Application

Ideal for use in workshops, construction sites, manufacturing plants, and event venues where robust and mobile power distribution is required.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned unit prevents the emission of approximately 160 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the CO2 absorption of 8 trees over a year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, the AMAXX series uses a standard DIN rail. You can replace the existing breakers with others of a suitable rating, provided they physically fit and are compliant with local electrical codes.

The '6h' (6 o'clock) designation refers to the position of the earth pin relative to the keyway on the socket. This is a standard IEC 60309 convention to ensure that plugs and sockets of different voltage and frequency ratings cannot be connected. 6h is standard for 380-415V three-phase systems.

With an IP44 rating, this unit is protected against splashing water from all directions. It is suitable for use in covered outdoor areas or locations where it is not exposed to direct, heavy rain or water jets. For full outdoor exposure, a unit with a higher IP rating (e.g., IP67) would be recommended.
