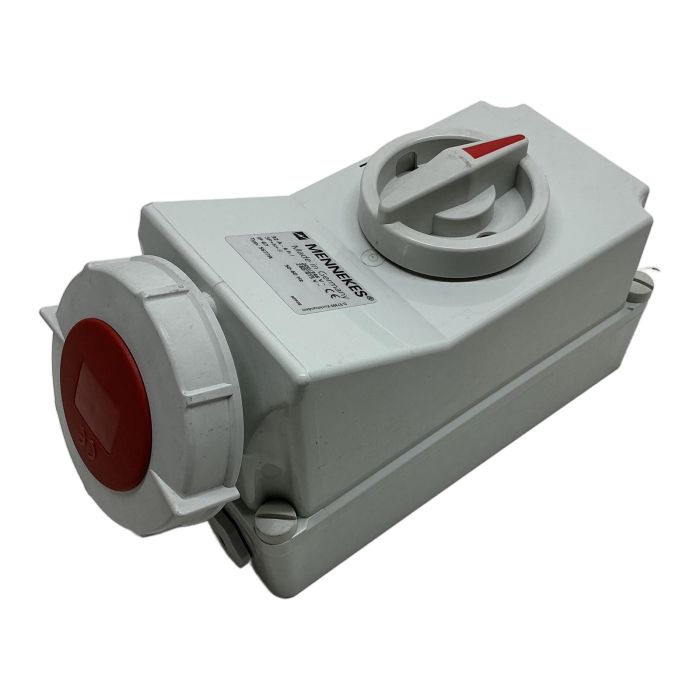

Mennekes 32A 5-Pole Switched & Interlocked Wall Socket

Description

The Mennekes 5677A is a high-quality wall-mounted socket outlet featuring an integrated switch with a mechanical interlock. Part of the robust AMAXX series, it is designed for demanding industrial environments where safety and reliability are paramount. The IP67 rating ensures protection against dust ingress and temporary immersion in water, making it suitable for both indoor and outdoor applications.

Specifications

• Manufacturer: Mennekes
• Type: 5677A
• Current Rating: 32 A
• Voltage Rating: 200/346V to 240/415V AC
• Frequency: 50-60 Hz
• Number of Poles: 5 (3P+N+E)
• Clock Position: 6h
• Ingress Protection: IP67
• Connection: Screw terminals
• Features: Switched, mechanically interlocked

Label Info

• Typ: 5677A
• 32A - 6h
• 3P+N+E
• 200/346V - 240/415V~
• IP 67
• Made in Germany

Application

Ideal for use in workshops, manufacturing plants, construction sites, and agricultural settings for connecting heavy machinery and portable equipment safely.

Country of Origin

This product is manufactured in Germany.

CO2 Impact

Opting for this reused industrial component prevents the emission of approximately 32 kg of CO2, which is comparable to the emissions from a 160 km car journey. Your purchase contributes to a more sustainable industrial sector.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The mechanical interlock is a safety feature that prevents the switch from being turned 'ON' unless a plug is fully inserted. Conversely, the plug cannot be removed while the switch is in the 'ON' position. This prevents making or breaking a circuit under load, reducing the risk of arc flash and enhancing operator safety.

Yes, the IP67 rating signifies that the socket is completely dust-tight and is protected against the effects of temporary immersion in water (up to 1 meter for 30 minutes). This makes it perfectly suitable for outdoor installations and areas subject to washdowns.

For a 32A rated socket, a minimum cable cross-section of 4 mm squared is typically recommended, though 6 mm squared is often used for longer cable runs to minimize voltage drop. Always consult local electrical codes and a qualified electrician to ensure compliance and safety.
