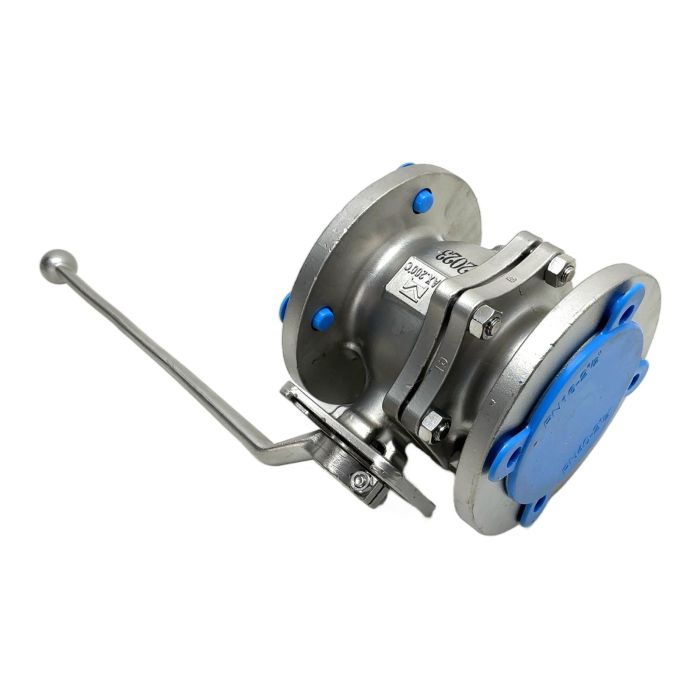

Meca-Inox PY4 Series Stainless Steel Flanged Ball Valve

Description

This is a new, unused Meca-Inox flanged ball valve from the PY4 series. It is designed for reliable shut-off in demanding industrial applications. The valve features a robust two-piece, split-body design made from high-grade 1.4408 stainless steel, offering excellent durability and corrosion resistance. It comes with a manual lever for operation and includes an ISO 5211 compliant mounting pad for easy conversion to automated actuation. The valve is certified as Fire Safe according to API-607 standards.

Specifications

• Manufacturer: Meca-Inox
• Series: PY4
• Nominal Diameter (DN): 65
• Pressure Rating (PN): 10-16
• Body Material: 1.4408 Stainless Steel (CF8M)
• Maximum Temperature: 200 deg. C
• Connection: Flanged
• Actuation Mounting: ISO 5211 F07/F10, Stem S17 (17mm square)
• Operation: Manual Lever

Label Info

• DN65 PN10-16
• 1.4408
• MAX. 200C
• FIRE SAFE API-607
• F07/F10/S17
• Year: 2023

Application

Suitable for a wide range of media in industries such as chemical processing, water treatment, oil and gas, and general process control where reliable performance and corrosion resistance are critical.

Country of Origin

Manufactured in France.

CO2 Impact

By purchasing this pre-owned valve, you contribute to a circular economy and avoid the emission of approximately 28 kg of CO2 associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the F07/F10/S17 marking on the top flange mean?

This refers to the ISO 5211 standard for mounting actuators. F07 and F10 are two different standard bolt circle patterns for the mounting flange, making it versatile. S17 indicates the female drive on the actuator should be a 17mm square to fit the valve stem.

Yes, 1.4408 (equivalent to CF8M or AISI 316) is an austenitic stainless steel with molybdenum, which provides excellent resistance to pitting and crevice corrosion, making it very suitable for marine environments, chlorinated water, and a wide range of chemicals.

For a maximum temperature rating of 200 degrees Celsius, these valves are typically fitted with reinforced PTFE (TFM, PFA) or other high-performance polymer seats to ensure a tight seal and long service life at elevated temperatures.
