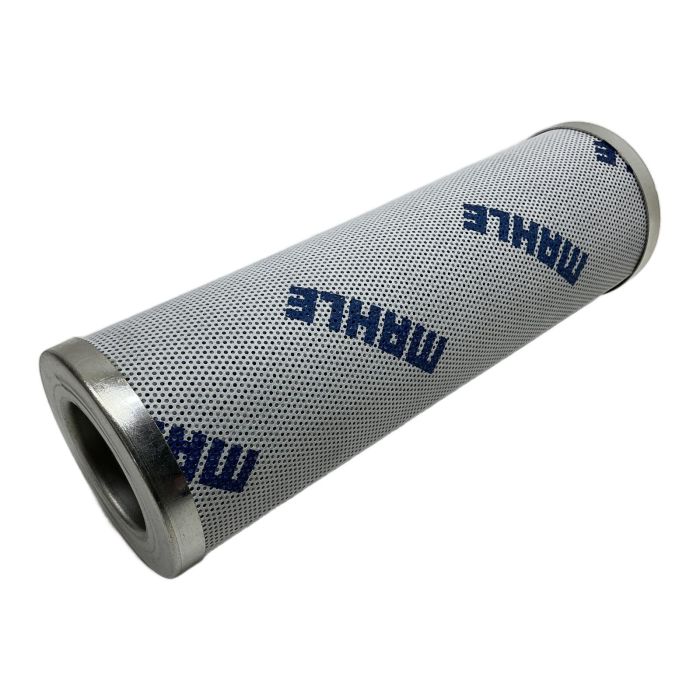

MAHLE PI 3130 PS 10 Hydraulic Filter Element

Description

The MAHLE PI 3130 PS 10 is a premium hydraulic filter element designed to protect sensitive hydraulic components from particulate contamination. It ensures optimal system performance and longevity by maintaining fluid cleanliness. This element is suitable for a wide range of industrial applications, including manufacturing, mobile hydraulics, and power generation.

Specifications

• Manufacturer: MAHLE
• Type: PI 3130 PS 10
• Manufacturer Part Number: 77680148
• Filtration Rating: 10 micron (nominal)
• Filter Medium: PS (Sm-x, synthetic multi-layer)
• Seals: NBR (Buna-N)
• Collapse Pressure Rating: 20 bar (290 PSI)

Label Info

• Brand: MAHLE
• Model: PI 3130 PS 10

Application

This filter element is commonly used in return-line and pressure filters within industrial hydraulic systems to remove contaminants generated during operation, ensuring reliable performance of valves, pumps, and cylinders.

Country of Origin

This product is manufactured by MAHLE in Germany.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and helping to save 1.4 kg of CO2 emissions compared to a new production. This saving is equivalent to driving a car for approximately 7 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The "PS" designation signifies Mahle's Sm-x synthetic multi-layer filter media, which offers high dirt-holding capacity and low pressure drop, making it ideal for standard hydraulic applications. "Mic" refers to micro-glass fiber media for finer filtration, while "Drg" indicates a wire mesh media, which is cleanable and used for coarse filtration.

The PI 3130 series elements are designed to withstand a differential pressure of up to 20 bar (290 PSI). However, the system's bypass valve setting ultimately determines when fluid bypasses the element. Exceeding the collapse pressure rating can cause filter failure.

Yes, the "PS" filter medium and standard NBR seals are generally compatible with mineral oils and certain biodegradable fluids (e.g., HETG, HEES). For high-temperature or aggressive synthetic fluids, a version with Viton (FPM) seals would be required.
