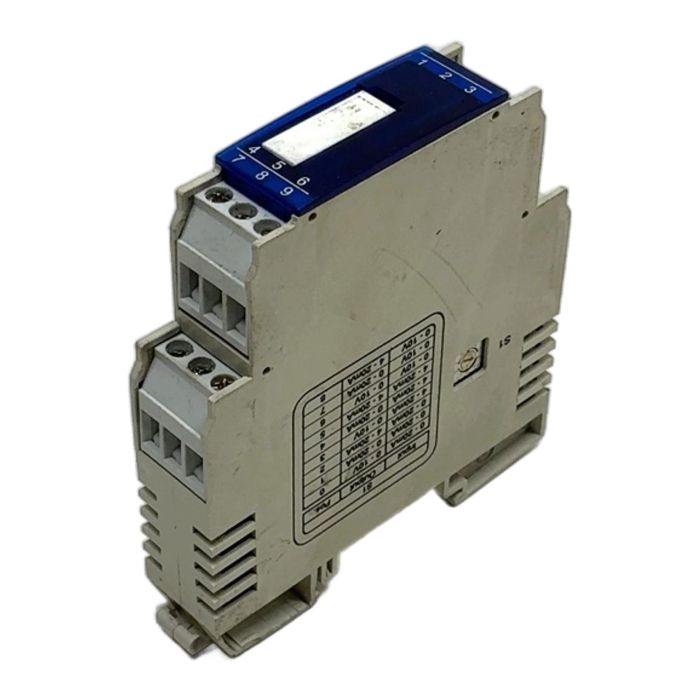

LUTZE Universal Signal Converter 750510

Description

The LUTZE 750510 is a highly reliable universal signal converter designed for industrial applications. It provides galvanic isolation and conversion for standard analog signals (voltage and current). With its wide-range power supply and easy DIP-switch configuration, it offers maximum flexibility for system integrators. This module is ideal for eliminating ground loops and protecting sensitive control equipment.

Specifications

• Manufacturer: LUTZE
• Model: 750510
• Order Number: 919930
• Power Supply: 24-240V AC/DC, 0.75W
• Input Signals: 0-10V, 0-20mA, 4-20mA
• Output Signals: 0-10V, 0-20mA, 4-20mA
• Isolation: 3-way galvanic isolation
• Mounting: DIN-rail
• Configuration: Via DIP switches

Label Info

• Type: 750510
• WNAA: 6-0510
• Instr.Ord.No.: 919930
• Certification: cULus Listed 3TGF, CE
• Hazardous Location Rating: CI. I, Div. 2, Groups A,B,C,D T4A

Application

This signal converter is suitable for a wide range of applications in process control and factory automation, including signal isolation in PLC systems, level and pressure measurement, and motor speed control feedback loops.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this pre-owned LUTZE 750510, you are saving approximately 4.8 kg of CO2 emissions compared to purchasing a new one. This sustainable choice supports the circular economy and reduces industrial waste.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

How do I configure the input and output signal types on the LUTZE 750510?

Configuration is done via the S1 DIP switches located on the side of the unit. A table printed on the device shows the correct switch positions for each combination of input (e.g., 0-10V, 4-20mA) and output signal type. No special software is required.

What is the galvanic isolation rating between the input, output, and power supply circuits?

The LUTZE 750510 features 3-way galvanic isolation up to 4 kV. This ensures that the input, output, and power supply circuits are electrically separated, which protects against ground loops and transient voltage spikes.

Can this universal converter be used in hazardous locations as indicated by the UL listing?

Yes, it is UL listed for Class I, Division 2, Groups A, B, C, D hazardous locations. When installed in these environments, it must be used within a suitable enclosure and connected according to the specific control drawing requirements, ensuring voltage and current limits (max. 30V/max. 40mA) are not exceeded.
