Lumberg Automation M12 Actuator/Sensor Cable, 5 Meters

Description

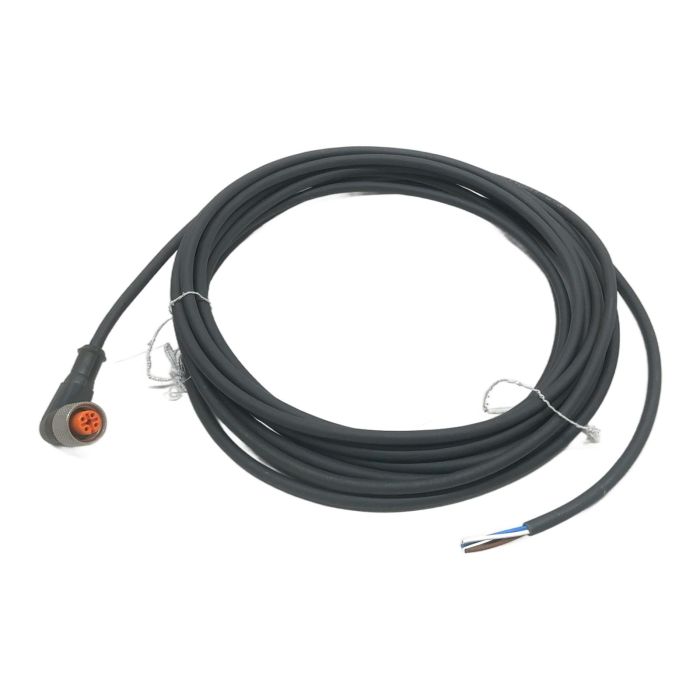

This is a high-quality actuator/sensor cordset, model RKWT/LED P 4-225/5 M, from Lumberg Automation, a Belden brand. It features a robust, angled female M12 connector with 4 poles and integrated LED indicators for easy diagnostics. The 5-meter cable has a durable black PUR (polyurethane) jacket, making it suitable for demanding industrial environments. The opposite end is unterminated (flying leads) for flexible integration into your system.

Specifications

• Manufacturer: Lumberg Automation
• Part Number: RKWT/LED P 4-225/5 M / 103328
• Connector 1: M12 Female, Angled, 4-Pin, A-Coded
• Connector 2: Flying Leads (Unterminated)
• Cable Length: 5 meters
• Jacket Material: PUR (Polyurethane)
• Jacket Color: Black
• Number of Conductors: 4
• LED Indicators: Yes (Power, Switching Status)
• Rated Voltage: 24V DC

Label Info

• RKWT/LED P 4-225/5 M
• CZ 1728

Application

Ideal for connecting sensors, actuators, valves, and other components in factory automation, robotics, and machine building applications where a reliable and rugged connection is required.

Country of Origin

Made in the Czechia.

CO2 Impact

Choosing this component saves approximately 12.0 kg of CO2 compared to a new product, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What do the LEDs on the RKWT/LED P 4-225 connector indicate?

The three integrated LEDs provide clear visual status indication. Typically, one LED indicates power (green), and the other two (yellow) indicate the switching status of the connected sensor or actuator signals on pins 2 and 4.

What is the advantage of the PUR (polyurethane) cable jacket on this cordset?

The PUR jacket offers excellent resistance to oils, chemicals, and abrasion. It is also halogen-free and has good flexibility, making it ideal for use in harsh industrial environments, including applications with motion like robotics or machine tools.

What are the pin assignments for a standard 4-pole M12 A-coded connector like this one?

For a standard A-coded 4-pole M12 connector, the pinout is typically: Pin 1 for +24V DC (brown wire), Pin 2 for Signal 2 (white wire), Pin 3 for 0V/GND (blue wire), and Pin 4 for Signal 1 (black wire). Always verify with your device's datasheet before connecting.
