Lumberg Automation Sensor/Actuator Cable M12 10m

Description

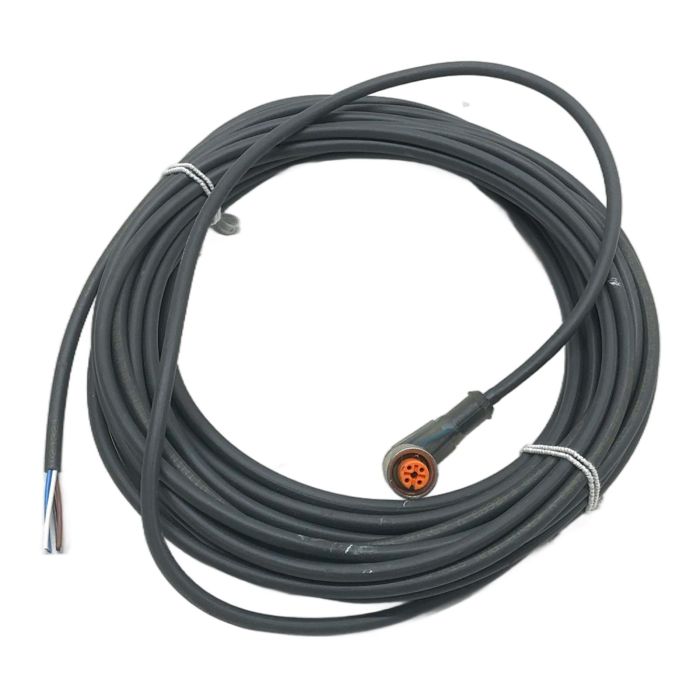

This is a high-quality sensor/actuator cable, model RKWT/LED P 4-225/10 M, from Lumberg Automation, a trusted name in industrial connectivity. This 10-meter cordset is designed for reliable connection of sensors and actuators in demanding automation environments. It features an angled M12 female connector for easy installation in tight spaces and flying leads for versatile termination.

Specifications

• Manufacturer: Lumberg Automation (a Belden Brand)
• Model: RKWT/LED P 4-225/10 M
• Connector Type: M12 Female, Angled, 4-Pin A-Coded
• Number of Wires: 3
• Cable Length: 10 meters
• Cable Jacket Material: PUR (Polyurethane)
• Jacket Color: Black
• LED Indicators: Yes (Power and Signal)
• IP Rating: IP67 / IP69K (when properly mated)

Label Info

• RKWT/LED P 4-225/10 M
• CZ 1951

Application

Ideal for use in factory automation, robotics, machine building, and material handling systems where reliable signal and power transmission to sensors and actuators is critical.

Country of Origin

This product is typically manufactured in Germany.

CO2 Impact

Opting for this pre-owned component avoids the emission of approximately 16.0 kg of CO2 compared to manufacturing a new one. This saving is comparable to driving a car for 80 kilometers.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What do the LEDs on the M12 connector indicate?
The connector features two LEDs. Typically, a green LED indicates that power is supplied to the connected device, while a yellow LED indicates the signal or switching status of the sensor/actuator.

What is the benefit of a PUR cable jacket in an industrial setting?
A PUR (Polyurethane) jacket offers excellent resistance to abrasion, oils, chemicals, and UV radiation. It is also halogen-free and remains flexible over a wide temperature range, making it ideal for harsh industrial environments and applications with motion, such as drag chains.

Is the 4-pin connector on this 3-wire cable compatible with a 3-pin sensor?
Yes. The 4-pin M12 A-coded connector is mechanically compatible with 3-pin M12 connectors. This cable uses 3 of the 4 available pins (typically pin 1 for power, pin 3 for ground, and pin 4 for signal), leaving one pin unconnected. It will function correctly with a standard 3-pin device.
