Lincoln SSV6 Progressive Lubrication Divider

Description

The Lincoln SSV6 is a high-performance progressive metering device, also known as a divider valve, designed for centralized lubrication systems. As a product from an SKF Group Brand, it guarantees exceptional quality and reliability. This device accurately distributes lubricant from a single inlet to six separate outlets, ensuring that all connected lubrication points receive the correct amount of grease or oil. Its block-style, single-piece construction eliminates the need for gaskets or seals between sections, providing robust performance under pressures up to 350 bar.

Specifications

• Manufacturer: Lincoln (An SKF Group Brand)
• Model: SSV6
• Number of Outlets: 6
• Dispense Volume per Outlet Cycle: 0.2 cm3
• Maximum Operating Pressure: 350 bar (5000 psi)
• Material: Steel
• Inlet Connection: G 1/8
• Outlet Connection: M10x1

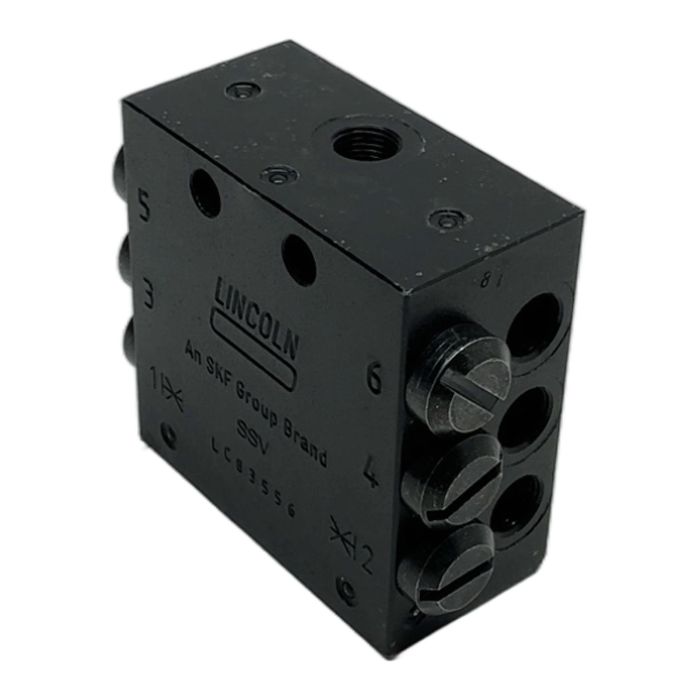

Label Info

• Brand: LINCOLN
• Group: An SKF Group Brand
• Model Series: SSV
• Serial Number: LC83556

Application

The SSV6 is widely used in various industries for automatic lubrication of machinery. Common applications include industrial presses, wind turbines, construction equipment, agricultural machinery, and commercial vehicles where reliable and precise lubrication is critical for operational uptime.

Country of Origin

Germany

CO2 Impact

By choosing this pre-owned Lincoln SSV6 divider, you are contributing to a circular economy and avoiding approximately 1.2 kg of CO2 emissions. This saving is equivalent to the emissions from driving a standard car for 6 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, by removing the plug between two outlets (e.g., 1 and 2), the lubricant from the first outlet is added to the second, effectively doubling the discharge volume from the second outlet.

The SSV6 is compatible with oils of at least 40 mm2/s and greases up to NLGI class 2. Always consult the system's technical manual for specific requirements.

You can visually monitor the movement of an indicator pin attached to one of the pistons. Alternatively, electronic monitoring can be achieved by fitting a piston detector or proximity switch to one of the outlets.
