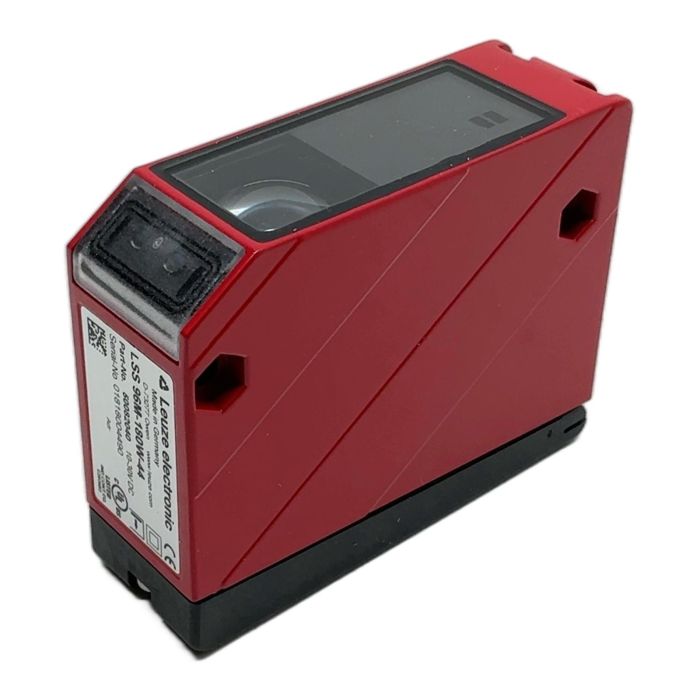

Leuze LSS 96M-180W-44 Photoelectric Sensor Transmitter

Description

The Leuze LSS 96M-180W-44 is a high-performance through-beam photoelectric sensor transmitter designed for demanding industrial automation tasks. As part of the 96 series, it offers an exceptional operating range of up to 180 meters, ensuring reliable detection over long distances. Its rugged die-cast aluminum housing and high protection ratings of IP67 and IP69K make it perfectly suited for use in harsh environments, including those with high-pressure washdowns.

Specifications

• Manufacturer: Leuze
• Type: LSS 96M-180W-44
• Part Number: 50082040
• Function: Through-beam photoelectric sensor transmitter
• Operating Range: 0 - 180 m
• Light Source: LED, Infrared
• Supply Voltage: 10 - 30V DC
• Connection: M12 connector, 4-pin
• Degree of Protection: IP67, IP69K
• Operating Temperature: -40 to +60 deg. C
• Housing Material: Die-cast aluminum

Label Info

• S/N: 01816004480
• Batch-No.: D0A143333

Application

This sensor transmitter is ideal for applications in logistics, conveyor technology, material handling, and plant engineering where long-distance and reliable object detection is critical.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and have helped avoid approximately 6.8 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This transmitter is part of the Leuze 96 series. It must be paired with a compatible receiver, such as the Leuze LSR 96M/P-... or LSR 96M/N-... models, to function correctly as a through-beam sensor.

The suffix '-44' in Leuze product numbers often refers to specific connection or feature variants. In this case, it typically indicates a model with a 4-pin M12 connector for power and signaling. Always check the datasheet to confirm compatibility with your wiring setup.

Yes, with its high IP67 and IP69K ratings, the sensor is fully protected against dust and water ingress, including high-pressure, high-temperature washdowns. The die-cast aluminum housing also provides excellent durability for outdoor or harsh industrial environments.
