Description / LENZE MDERAXX063-32V1 13441524 P030FB01C0-PB3

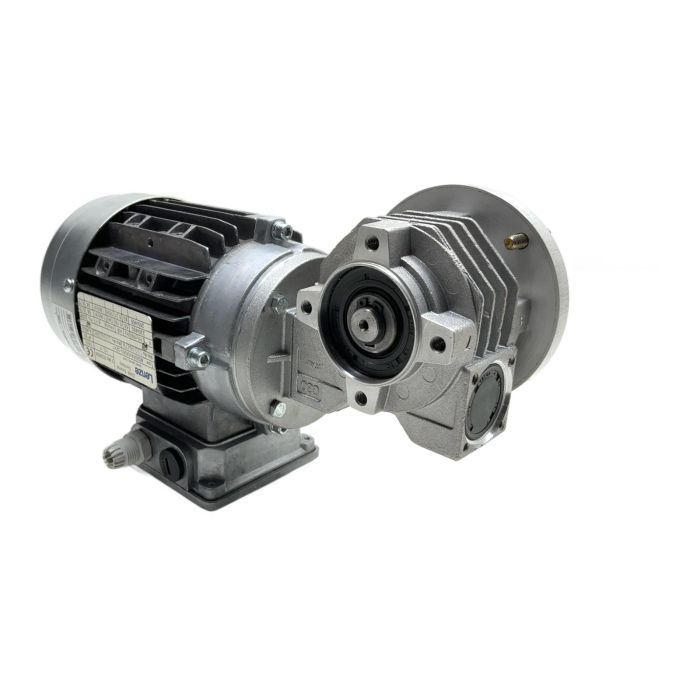

Lenze Geared Motor 0.18kW MDERAXX063-32V1
Description
This is a high-quality geared motor assembly from Lenze, featuring the MDERAXX063-32V1 three-phase AC motor. It delivers 0.18 kW of power with a 4-pole configuration. The motor is coupled with a worm gearbox with a reduction ratio of 7:1, providing high torque at a reduced output speed. This unit is an excellent example of new old stock, in pristine condition and ready for deployment in demanding industrial environments.
Specifications
- Manufacturer: Lenze
- Motor Type: MDERAXX063-32V1
- Power: 0.18 kW at 50 Hz / 0.21 kW at 60 Hz
- Voltage: 230/400V at 50 Hz / 265/460V at 60 Hz
- Current: 1.06 / 0.61 A (Delta/Y)
- Speed: 1340 r/min at 50 Hz / 1605 r/min at 60 Hz
- Frequency: 50/60 Hz
- Poles: 4
- Gearbox Ratio (i): 7
- Protection Class: IP55
- Insulation Class: F
Label Info
- Motor Type: MDERAXX063-32V1
- Motor Mat-No.: 13248478
- Assembly Id.No.: 13441524
- Gearbox PN: 13096639
- Gearbox Type Code: P030FB01C0-PB3
Application
This geared motor is suitable for a wide range of applications, including conveyor systems, mixers, material handling equipment, and other machinery requiring controlled speed and high torque.
Country of Origin
The motor was manufactured in Germany, the gearbox in Italy, and the final assembly performed by Lenze in Austria.
CO2 Impact
By reusing this component, you are avoiding approximately 40.0 kg of CO2 emissions that would be generated from manufacturing a new one. This saving is comparable to the emissions from a 200-kilometer car journey.
Availability
This model is from a discontinued series but is available from our stock as a new, unused item. Ideal for direct replacement of a failed unit without requiring system modifications. Order now from PLC2Day for expert support and fast delivery.
FAQ
Question?
Is this motor compatible with a variable frequency drive (VFD)?
Answer
Yes, as a standard three-phase asynchronous motor, the MDERAXX063-32V1 is fully compatible with VFDs for variable speed control. Ensure the VFD parameters are set according to the motor's nameplate data.
Question?
What does the mounting position 'MP: B3' on the label signify?
Answer
B3 is a standard IEC mounting position that denotes horizontal, foot-mounted installation. However, this assembly also features a flange on the gearbox, allowing for alternative mounting orientations depending on the application's requirements.
Question?
Does the gearbox require an oil change?
Answer
Worm gearboxes of this size are typically filled with high-quality synthetic oil and are considered lubricated for life under normal operating conditions. No regular oil changes are necessary, making it a low-maintenance component.PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
Last Update: Friday, March 13, 2026
More Information
| Item Number | MDERAXX063-32V1 13441524 P030FB01C0-PB3 |
|---|---|
| Brands | LENZE |
| HS Code | 85015100 |
| EAN | 0 |
| HS Description | AC Geared Motor |
| Manufacturer | lenze |
| Product Condition | Used |
| Packing Condition | Neutral Packing Packing |
