MCA asynchronous servo motors: The ideal solution for dynamic applications, MCA asynchronous servo motor for precisely controlled motion, Torque range: 2.0 to 1,100 Nm, Power range: 0.8 to 53.8 kW, Particularly suitable for environments which require minimal, dimensions and a high degree of engineered operational reliability, Advantages: Small volume, Low moments of inertia, Plug connections for quick mounting and easy serviceability, Electronic nameplate for easy commissioning, Resolver as feedback, alternately: incremental encoder or absolute value encoder, Available with holding brake, Natural or forced ventilation, Enclosure IP65 (forced ventilation IP54), in the range from 500 to 1,100 Nm IP23, Specifications: 3 Phase (Servo) Motor: 390V, 3,8kW, 21,5 Nm, 60Hz, 1680 r/min, 8,5A, 5,1 HP, Mo 23,9Nm, cosq0,80, C86: 1369, IP54, I.CL. F, Ta 40C, KTY, Feedback: RS, C416:53771017, IdNr: 13221335, Brake: V-A-Nm, No: 112442100. Serialno: 1322133510000170425461. NOTE: Suspension eye is missing.

• MCA asynchronous servo motors: The ideal solution for dynamic applications
• MCA asynchronous servo motor for precisely controlled motion
• Torque range: 2.0 to 1,100 Nm
• Power range: 0.8 to 53.8 kW
• Particularly suitable for environments which require minimal dimensions and a high degree of engineered operational reliability
• Advantages:
  • Small volume
  • Low moments of inertia
  • Plug connections for quick mounting and easy serviceability
  • Electronic nameplate for easy commissioning
  • Resolver as feedback, alternately: incremental encoder or absolute value encoder
  • Available with holding brake
  • Natural or forced ventilation
  • Enclosure IP65 (forced ventilation IP54), in the range from 500 to 1,100 Nm IP23
• Specifications:
  • 3 Phase (Servo) Motor: 390V, 3,8kW, 21.5 Nm, 60Hz, 1680 r/min, 8.5A, 5.1 HP, Mo 23.9Nm, cosq0.80, C86: 1369, IP54, I.CL. F, Ta 40C, KTY
  • Feedback: RS, C416:53771017, IdNr: 13221335, Brake: V-A-Nm, No: 112442100
  • Serialno: 1322133510000170425461
• NOTE: Suspension eye is missing

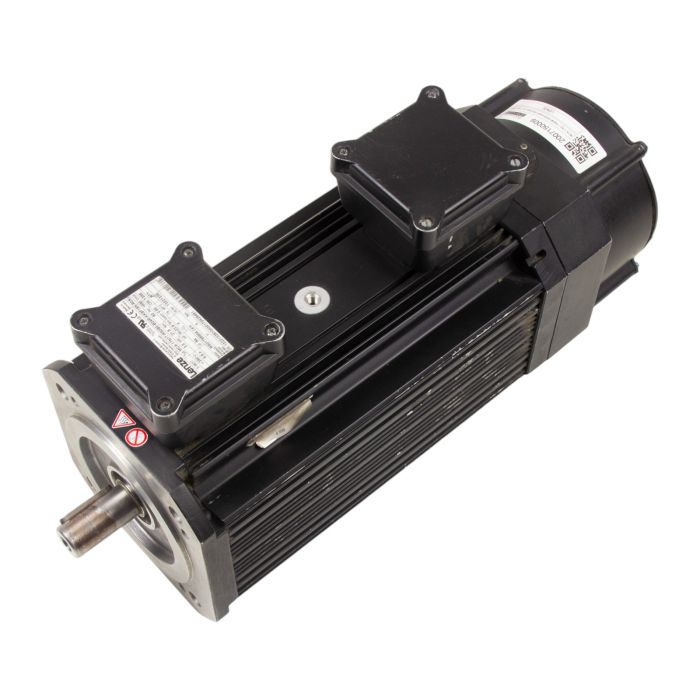

Lenze MCA-17N17-RS0B0-B24R-KK5F19N-R0SU is a versatile industrial item suitable for various applications. It can be purchased at PLC2Day. Ideal for use in manufacturing, packaging, and material handling industries.
