Lenze 9400 HighLine Servo Drive

Description

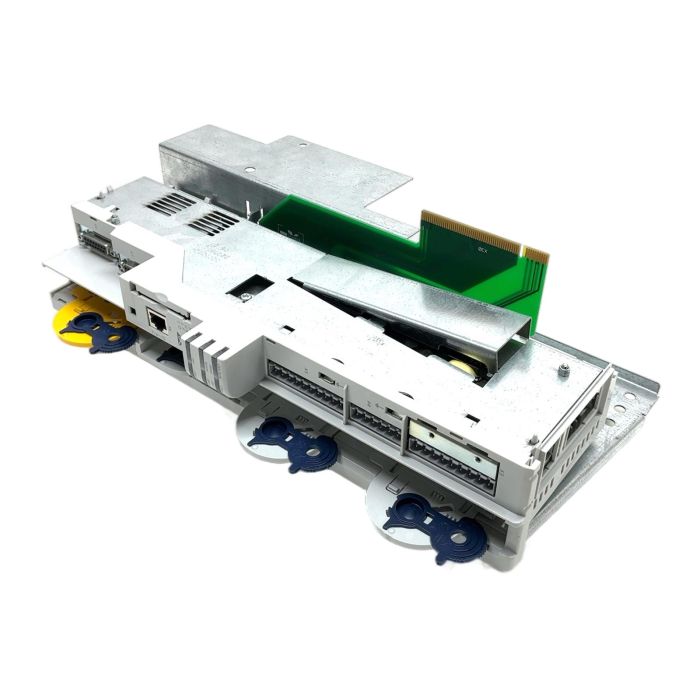

This is a Lenze Single Drive HighLine servo drive, model ELCAFHI1524, from the established 9400 series. It is a high-performance, modular servo inverter designed for precise speed and torque control in demanding industrial automation applications. This specific unit is rated for 2.9 kW and operates on a 400/500V input. It comes pre-configured with communication and PLC modules for enhanced functionality.

Specifications

• Manufacturer: Lenze
• Series: 9400 HighLine
• Model: ELCAFHI1524
• Input: 3/PE AC, 400/500V, 50/60Hz, 5.5/4.4 A, 3.8 kVA
• Output: 3/PE AC, 0-400/500V, 0-480Hz, 4.0/3.4 A, 2.9 kVA
• Firmware Version: SW 01.18
• Hardware Version: HW VD

Label Info

• Slot 1: Profibus
• Slot 3: MM340-PLC PIS, 4MB
• Slot 4: SM300

Application

Ideal for applications requiring precise motion control, such as packaging machinery, robotics, material handling systems, and automated assembly lines.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this reused servo drive over a new one prevents the emission of approximately 60 kg of CO2, which is comparable to the emissions from a 300 km car journey. Your purchase makes a tangible environmental difference.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The integrated PLC in the Lenze 9400 series is programmed using the Lenze L-force Engineer software suite. You will need the appropriate version to connect and program the PLC logic.

This unit is equipped with a Profibus module. The 9400 series features a modular design, so it is generally possible to swap communication modules, but compatibility should be verified based on the specific module and firmware version of the drive.

The software (SW) version, or firmware, is critical for functionality and compatibility. Version 01.18 dictates the available features, parameter sets, and compatibility with programming software and other system components. Always ensure your system supports this firmware version before integration.
