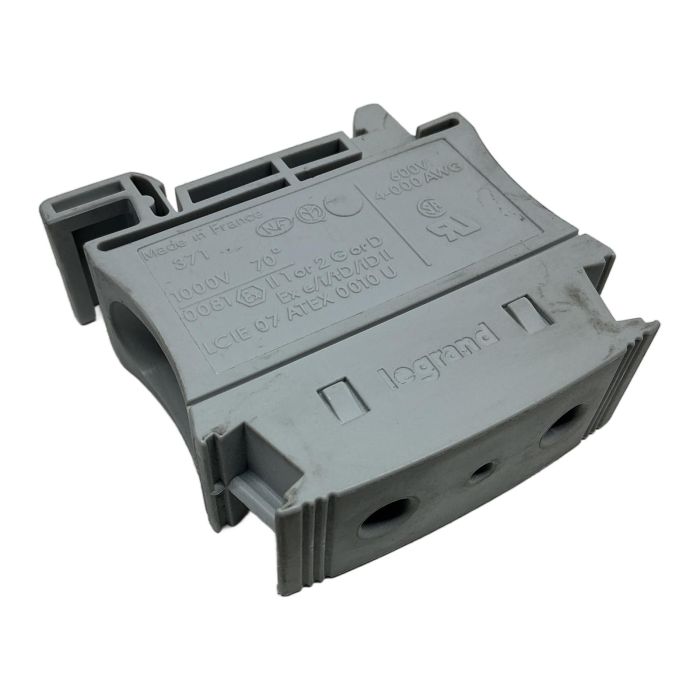

Legrand Viking 3 Screw Terminal Block for High-Power Applications

Description

The Legrand 037170 is a high-quality, single-pole screw terminal block from the proven Viking 3 series. It is designed for robust and secure termination of large copper conductors in power distribution panels and industrial control cabinets. With a voltage rating of up to 1000V and a wide wire acceptance range up to 95mm2 (3/0 AWG), this block is ideal for main power entry and distribution connections. Its ATEX certification also allows for safe use in potentially explosive atmospheres.

Specifications

• Manufacturer: Legrand
• Part Number: 037170
• Series: Viking 3
• Type: Screw Terminal Block
• Number of Poles: 1
• Rated Voltage (IEC): 1000V
• Rated Voltage (UL/CSA): 600V
• Wire Cross-Section: 16 mm2 to 95 mm2
• Wire Gauge (AWG): 4 AWG to 3/0 AWG
• Conductor Material: Copper (Cu) only
• Mounting Type: DIN Rail
• Pitch: 26 mm
• Color: Grey

Label Info

• Brand: Legrand
• Model: 037170
• Approvals: NF, UL, SP
• ATEX Certification: LCIE 07 ATEX 0010 U
• ATEX Marking: II 2 G D Ex e/tD/iD II

Application

This terminal block is commonly used in industrial automation, power distribution panels, machinery manufacturing, and building installations for connecting main power feeds, large motors, and other high-current equipment. Its ATEX rating makes it suitable for oil and gas, chemical, and mining industries.

Country of Origin

Made in France.

CO2 Impact

By choosing this pre-owned component, you are contributing to the circular economy and helping to avoid the CO2 emissions of new production. Opting for this reused Legrand terminal block saves an estimated 4 kg of CO2, which is equivalent to the emissions from driving a standard car for 20 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The recommended tightening torque varies with the wire size used. For the maximum 95mm2 conductor, a torque of approximately 10 to 12 Nm is specified by the manufacturer to ensure a secure and low-resistance connection. Always use a calibrated torque screwdriver or wrench.

No, this specific Viking 3 terminal block (037170) is designed and certified for use with copper (Cu) cables only. Using aluminum conductors can lead to galvanic corrosion and connection failure over time. For aluminum wires, you must use a terminal block specifically rated for Al/Cu connections.

This ATEX marking indicates the block is suitable for hazardous environments. 'Ex e' means 'Increased Safety' protection for gas atmospheres. 'II' is the equipment group for surface industries (not mining). '2' is the equipment category, for zones 1 (gas) and 21 (dust). 'G' stands for Gas and 'D' for Dust, meaning it is certified for both types of explosive atmospheres.
