Legrand 630 VA Single-Phase Control Transformer

Description

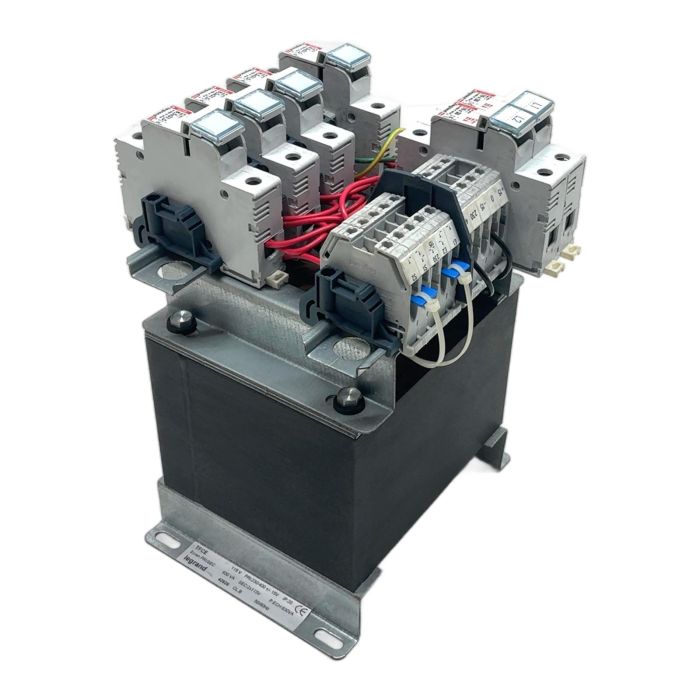

This Legrand TFCE 426 26 is a robust single-phase control, safety, and isolating transformer. It is designed to provide reliable AC voltage for control circuits in industrial machinery and automation panels. With a power rating of 630 VA, it offers flexible input and output voltage options to suit various applications. This unit comes pre-assembled with terminal blocks and Legrand fuse holders for simplified installation and circuit protection. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Legrand
• Type: TFCE 426 26
• Power Rating: 630 VA
• Primary Voltage: 230/400 V AC (+/- 15 V)
• Secondary Voltage: 115/230 V AC
• Frequency: 50/60 Hz
• Phase: Single-phase

Label Info

• Type: TFCE
• Ref: 426 26
• PRI: 230/400V +/-15V
• SEC: 115/230V
• Power: 630VA

Application

Ideal for powering control systems, contactors, relays, and other automation components that require a stable and isolated power source within an industrial control cabinet.

Country of Origin

Made in Italy.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid approximately 57.0 kg of CO2 emissions that would be generated from manufacturing a new one.

Availability

This is an obsolete item, but it is available from our stock. Limited quantities are available.

FAQ

How do I select between the 230V and 400V primary inputs?

You need to connect your input power lines to the appropriate terminals on the primary side of the transformer. The terminal block is typically marked. For 230V, you would use terminals 0 and 230. For 400V, you would use terminals 0 and 400. Always consult the wiring diagram for this specific model before making any connections.

No, this transformer is designed to provide either 115V or 230V on the secondary side, not both at the same time. The output voltage is determined by how the secondary windings are connected. This configuration must be set before operation.

This is an open-style transformer (IP00) intended for installation inside a protective enclosure, such as a control cabinet. The terminals are exposed, and it does not offer protection against dust or water ingress. It must be mounted in an enclosure that provides the required environmental protection.
