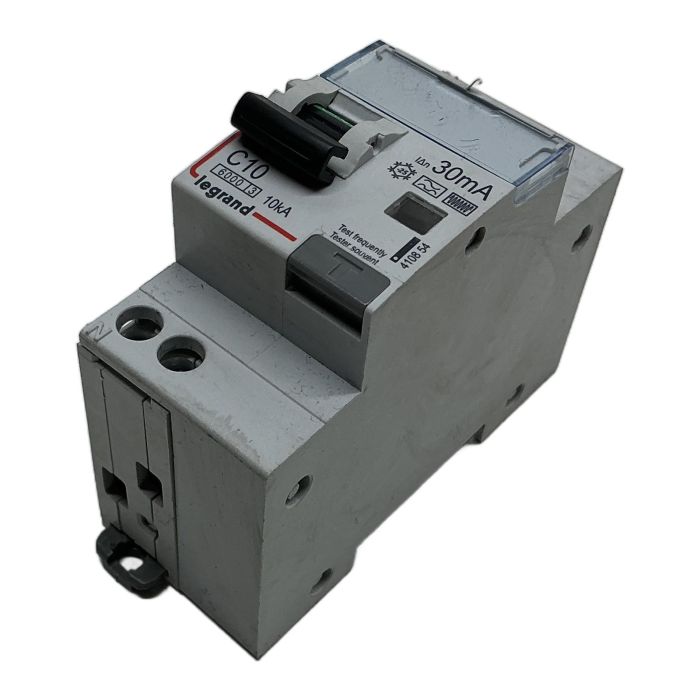

Legrand RCBO 10A 30mA 4108 54

Description

The Legrand 4108 54 is a high-quality Residual Current Circuit Breaker with Overcurrent protection (RCBO) designed to ensure the safety and reliability of electrical installations. This device combines earth leakage protection and overcurrent protection in one compact housing, making it an efficient solution for distribution boards. It is suitable for a wide range of applications in both residential and commercial buildings.

Specifications

• Manufacturer: Legrand
• Part Number: 4108 54
• Rated Current (In): 10 A
• Rated Residual Current (IΔn): 30 mA
• Tripping Curve: C
• Number of Poles: 1P+N
• Breaking Capacity: 6000 A (IEC 61009-1), 10 kA (IEC 60947-2)
• Mounting: DIN Rail

Label Info

• C10: Curve C, 10 Ampere
• IΔn 30mA: 30 milliampere rated residual operating current
• 6000 3 / 10kA: Short-circuit breaking capacity ratings

Application

This RCBO is ideal for final circuit protection where there is a risk of electric shock and overcurrent. It is commonly used in socket outlet circuits, lighting circuits, and for the protection of specific appliances in commercial, industrial, and residential environments.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused Legrand RCBO, you are contributing to a circular economy and avoiding approximately 8.0 kg of CO2 emissions compared to a new purchase. This is equivalent to driving an average car for 40 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the difference between a Type AC and a Type A RCBO?

A Type AC RCBO, like this model, is designed to trip on sinusoidal AC residual currents. A Type A RCBO trips on both sinusoidal AC and pulsating DC residual currents, offering a higher level of protection for circuits with modern electronic devices.

What does the 'C10' marking signify on this Legrand breaker?

The 'C' indicates the tripping curve, which is suitable for general applications with moderate inrush currents (e.g., lighting, socket outlets). The '10' indicates the rated current, meaning it will trip if the continuous current exceeds 10 Amperes.

Is this 1P+N RCBO suitable for a three-phase system?

This is a single-phase (1 Pole + Neutral) device and is designed to protect a single-phase circuit. For a three-phase system, you would need a 3P or 3P+N RCBO to protect the entire system, or you could use individual 1P+N RCBOs on each single-phase circuit derived from the three-phase supply.
