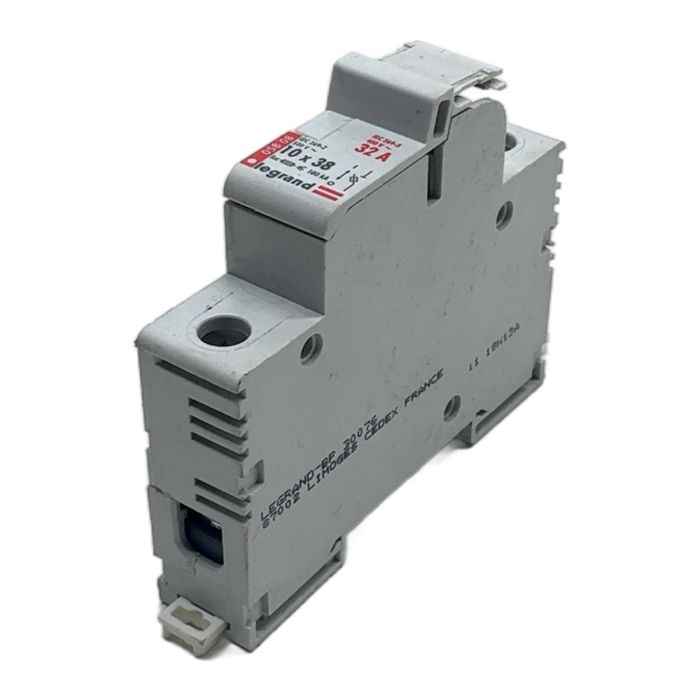

Legrand 005810 Fuse Holder

Description

The Legrand 005810 is a high-quality, single-pole fuse holder designed for DIN rail mounting in industrial control panels and electrical distribution systems. It provides reliable overcurrent protection by housing a 10 x 38 mm cartridge fuse. This component is rated for a maximum current of 32 Amperes and offers a high short-circuit breaking capacity of 100 kA, ensuring safety in demanding applications.

Specifications

• Manufacturer: Legrand
• Part Number: 005810
• Product Type: Fuse Holder / Fuse Disconnector
• Number of Poles: 1
• Rated Current: 32 A
• Rated Voltage: 400V AC (IEC 269-3), 500V AC (IEC 269-2)
• Fuse Size: 10 x 38 mm
• Mounting Type: DIN Rail
• Short-Circuit Current Rating (Icc): 100 kA

Label Info

• Brand: Legrand
• Model: 058 10
• Specs: 32A, 10x38, 400/500V~

Application

Ideal for protecting control circuits, motors, transformers, and other electrical loads in industrial automation, building management, and machinery. Its compact design and DIN rail compatibility make it easy to integrate into new or existing panels.

Country of Origin

This product is manufactured in France.

CO2 Impact

By purchasing this pre-owned component, you help avoid 2.4 kg of CO2 emissions associated with new production, contributing to a more sustainable industrial environment.

Availability

This is an obsolete item but is available from our stock. Limited quantities are on hand. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What type of fuse should be used with this Legrand 005810 holder?

This holder is designed for cylindrical cartridge fuses of size 10 x 38 mm. You should select a fuse with an appropriate amperage rating for your circuit, not exceeding the holder's maximum of 32A. Common types for this size include gG/gL for general purpose protection or aM for motor protection.

No, this specific model, the Legrand 005810, is a standard fuse carrier and does not have a built-in visual indicator (like an LED) to show when the fuse has blown. Status must be checked by testing the circuit's continuity or visually inspecting the fuse itself.

As stated on the device label, the short-circuit breaking capacity (Icc) is 100 kA when used with an appropriate 10x38mm fuse rated for this capacity. This high rating makes it suitable for industrial applications where high fault currents can occur.
