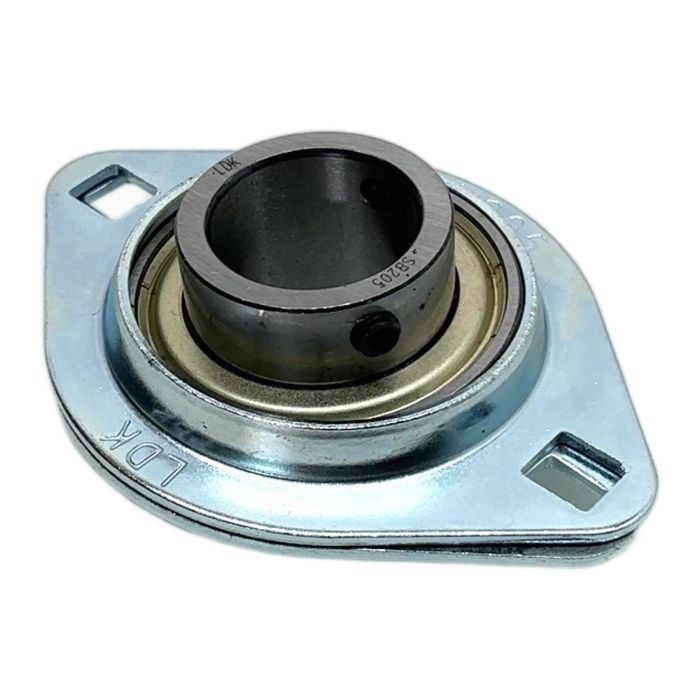

LDK SBPFL205 Pressed Steel Flange Bearing Unit

Description

The LDK SBPFL205 is a reliable and economical 2-bolt flange bearing unit. It features a pressed steel housing for lightweight mounting and includes a high-quality SB205 insert bearing with a 25mm bore. This unit is designed for applications where the shaft axis is perpendicular to the mounting surface. The insert bearing allows for initial misalignment, simplifying installation.

Specifications

• Manufacturer: LDK
• Part Number: SBPFL205
• Housing Type: PFL205 (2-Bolt Pressed Steel Flange)
• Bearing Insert: SB205
• Bore Diameter: 25 mm
• Locking Method: Set Screw
• Material: Pressed Steel Housing, Bearing Steel Insert

Application

Ideal for use in agricultural machinery, conveyor systems, food processing equipment, and other general industrial applications where light to moderate loads and speeds are expected.

Country of Origin

This product is manufactured in China.

CO2 Impact

By choosing this pre-owned item, you are helping to avoid the production of a new one, saving an estimated 0.36 kg of CO2. This is a small but meaningful contribution to reducing industrial emissions.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the main advantage of a pressed steel housing like the PFL205?

The primary advantages are its low weight and cost-effectiveness compared to cast iron housings. This makes it ideal for applications where weight is a concern and the loads are not excessive.

First, slide the unit onto the shaft and align it with the mounting holes. Loosely bolt the housing to the support surface. Then, tighten the two set screws on the bearing's inner ring evenly to secure it to the shaft. Finally, tighten the housing mounting bolts completely.

Standard SBPFL205 units are typically filled with grease suitable for a temperature range of -20 deg C to +120 deg C. For applications outside this range, a special high-temperature grease and potentially different seals would be required.
