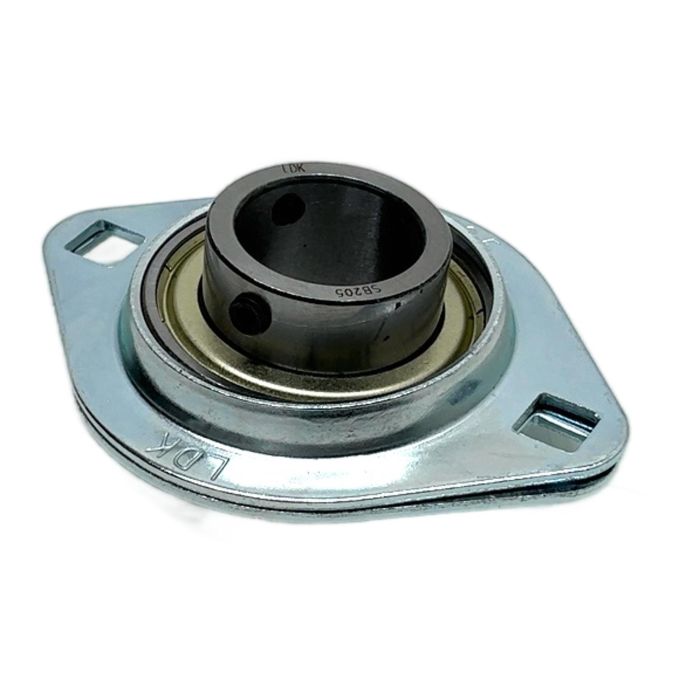

LDK SBPFL205 2-Bolt Pressed Steel Flange Bearing Unit

Description

The LDK SBPFL205 is an economical and reliable bearing unit, featuring a two-bolt pressed steel flange housing and a 25mm bore bearing insert. It's designed for light to medium-duty applications that require support for a rotating shaft. The set-screw locking mechanism ensures a secure fit on the shaft, making it easy to install and maintain.

Specifications

• Manufacturer: LDK
• Part Number: SBPFL205
• Housing Type: 2-Bolt Flange (Pressed Steel)
• Housing Model: PFL205
• Bearing Insert: SB205
• Bore Diameter: 25 mm
• Locking Method: Set Screw

Label Info

• Brand: LDK
• Model: SBPFL205

Application

This bearing unit is commonly used in conveyor systems, agricultural machinery, packaging equipment, and other general industrial machinery where simple and effective shaft support is needed.

Country of Origin

This product is manufactured in China.

CO2 Impact

By choosing this pre-owned item, you are helping to avoid the production of a new one, which saves approximately 0.4 kg of CO2. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the main advantage of a pressed steel housing like the PFL205?

Pressed steel housings are lightweight, economical, and suitable for applications with moderate loads and speeds. They are ideal where weight is a concern and the high load capacity of a cast iron housing is not necessary.

The set screws should be tightened alternately to the manufacturer's recommended torque specification. This ensures the shaft is securely centered and clamped, preventing slippage and vibration during operation. Over-tightening can distort the inner ring, while under-tightening can lead to shaft damage.

The standard SBPFL205 with a steel housing and standard grease may not be ideal. For food-grade applications, look for versions with stainless steel housings, stainless steel inserts (e.g., SSUCPFL series), and food-grade grease to comply with hygiene regulations.
