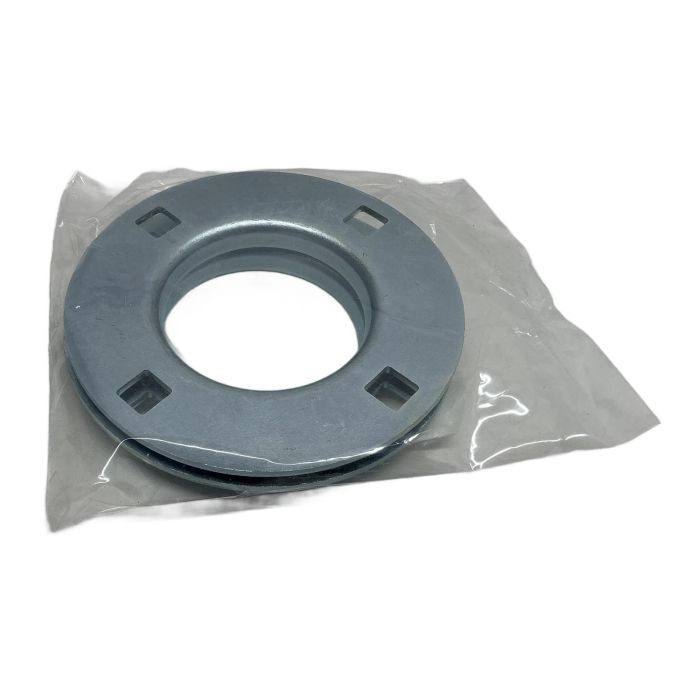

LDK PF 208 Pressed Steel Flange Housing

Description

The LDK PF 208 is a durable and cost-effective 4-bolt round flange housing made from pressed steel. It is designed to house a 208-series bearing insert, making it suitable for applications with a 40 mm shaft diameter. Its zinc-plated finish provides good corrosion resistance, making it a versatile choice for general machinery, conveyor systems, and agricultural equipment.

Specifications

• Manufacturer: LDK
• Model: PF 208
• Type: 4-Bolt Round Pressed Steel Flange Housing
• Compatible Bearing Insert Series: UC208, SA208, SB208
• Shaft Diameter: 40 mm
• Material: Pressed Steel, Zinc Plated

Label Info

• LDK PF 208 V5 PRESSED STEEL HOUSING
• ART: 03450322

Application

This housing is commonly used in material handling systems, agricultural machinery, packaging equipment, and light industrial applications where a simple and economical bearing mounting solution is required.

Country of Origin

This LDK bearing housing is manufactured in China.

CO2 Impact

By choosing this pre-owned component, you avoid the production of a new one, saving approximately 0.7 kg of CO2. This is a small but meaningful contribution to reducing industrial emissions.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What type of bearing insert is compatible with the LDK PF 208 housing?

This housing is designed for any standard '208' series bearing insert with a spherical outer ring, such as UC208 (set screw locking), SA208 (eccentric locking collar), or SB208 (set screw locking, narrower inner ring). All these correspond to a 40 mm shaft diameter.

The square mounting holes are typically designed for M10 carriage bolts, which prevent the bolt from turning during tightening. Standard M10 hex bolts can also be used.

No, pressed steel housings like the PF 208 are intended for light to moderate load applications and where minor misalignment can be tolerated. For high loads, high speeds, or precision mounting, a cast iron housing (e.g., UCF, UCFL series) is recommended.
