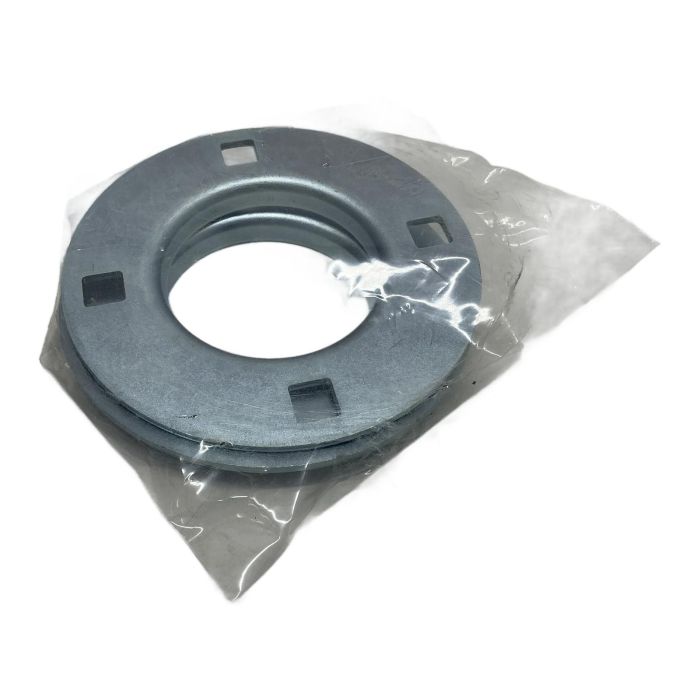

LDK PF 208 V5 Pressed Steel Flange Housing

Description

This is a two-piece pressed steel flange housing, model PF 208 V5, from LDK. It is designed to house a bearing insert for a 40mm shaft, providing a lightweight and cost-effective mounting solution. The zinc-plated finish ensures good corrosion resistance, making it suitable for a wide range of light to medium-duty applications in automation and machine building.

Specifications

• Manufacturer: LDK
• Type: Pressed Steel Flange Housing
• Model: PF 208 V5
• Housing Style: 2-Bolt Round Flange (PF Type)
• Compatible Shaft Diameter: 40 mm
• Compatible Bearing Insert Series: UC208, HC208, SA208, SB208
• Material: Pressed Steel, Zinc-Plated

Label Info

• Brand: LDK
• Model: PF 208 V5 PRESSED STEEL HOUSING
• Article No.: 03450322
• Note: DIT IS 1 SET !!! (This is 1 set)

Application

Ideal for use in conveyor systems, agricultural machinery, packaging equipment, and other general industrial machinery where a simple, flange-mounted bearing unit is required.

Country of Origin

Manufactured in China.

CO2 Impact

Choosing this reused component over a new one prevents the emission of approximately 0.9 kg of CO2, which is comparable to the savings from not driving a car for 4.5 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This housing is designed for a '208' series bearing insert, which corresponds to a 40mm shaft diameter. Common compatible models include UC208, UK208, HC208, SA208, and SB208 from various manufacturers.

Pressed steel housings are significantly lighter and more economical than their cast iron counterparts. They are ideal for applications with light to medium loads and where weight is a concern. Cast iron is preferred for heavy-duty applications requiring higher load capacity and rigidity.

The housing itself is simply a mechanical holder and does not require lubrication. The separate bearing insert that fits inside this housing typically comes pre-lubricated from its manufacturer. Some bearing inserts also feature a grease nipple for re-lubrication during service.
