Description / LATTY Lattyflon 4308 00101584
LATTYflon 4308 - High-Performance PTFE Gland Packing
Description

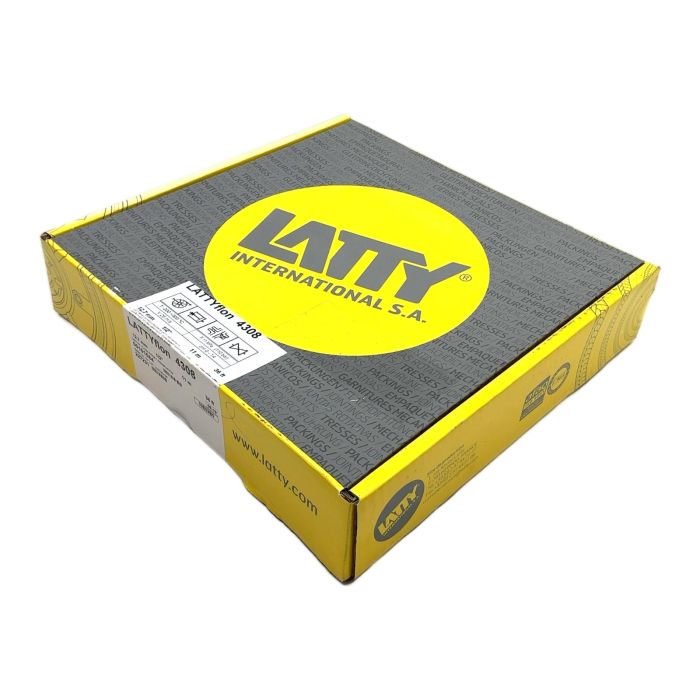

This is a roll of LATTYflon 4308 braided gland packing from LATTY International. Manufactured from 100% pure PTFE silk yarns and impregnated using LATTY's exclusive 'Filcoat' process, this packing offers exceptional performance in chemically aggressive environments. It is designed for sealing rotating machinery such as pumps, agitators, and mixers, as well as valves, across a wide range of industries including chemical, pharmaceutical, and food processing.
Specifications
- Manufacturer: LATTY
- Model: LATTYflon 4308
- Article Number: 00101584
- Material: PTFE silk yarns
- Cross-section: 12.7 mm x 12.7 mm (1/2 inch x 1/2 inch)
- Length: 11 m (36 ft)
- Temperature Range: -200 to +300 deg C
- Maximum Pressure: 11 MPa (110 bar)
- Maximum Shaft Speed: 26 m/s
- pH Range: 0 - 14
Label Info
- Item Nr: 00101584
- Batch Nr: 227231
- Date Code: 05.19 (May 2019)
Application
Ideal for use in pumps, agitators, mixers, and valves handling corrosive fluids, strong acids and bases, chemicals, and solvents. Its excellent chemical inertia makes it suitable for the chemical, food, and pharmaceutical industries.
Country of Origin
Manufactured in France.
CO2 Impact
By purchasing this new-old-stock product, you contribute to the circular economy and help avoid the emission of approximately 33 kg of CO2, which is equivalent to driving a car for 165 kilometers.
Availability
This item is in stock and ready for immediate dispatch. It is a new-old-stock (NOS) product in its original packaging. Order now from PLC2Day for expert support and fast delivery.
FAQ
Question? What makes LATTYflon 4308 suitable for aggressive chemical applications?
Answer
LATTYflon 4308 is constructed from 100% pure PTFE silk yarns. PTFE is known for its exceptional chemical inertia, making it resistant to nearly all chemicals, acids, and bases across the entire pH range of 0-14.
Question? What is the correct procedure for installing this gland packing?
Answer
Installation involves cutting the packing into individual rings using a mandrel of the correct shaft diameter. The rings should be installed one at a time, with joints staggered at 90 degrees. Ensure the gland is tightened evenly to allow for adequate leakage for lubrication and cooling during break-in.
Question? Can this packing be used in food or pharmaceutical applications?
Answer
Yes, as it is made from pure PTFE, LATTYflon 4308 is often suitable for food and pharmaceutical applications where compliance with regulations like FDA is required. However, you should always verify the specific product certifications against your application's requirements.PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
