Kuebler 10m M23 12-Pin Encoder Connection Cable

Description

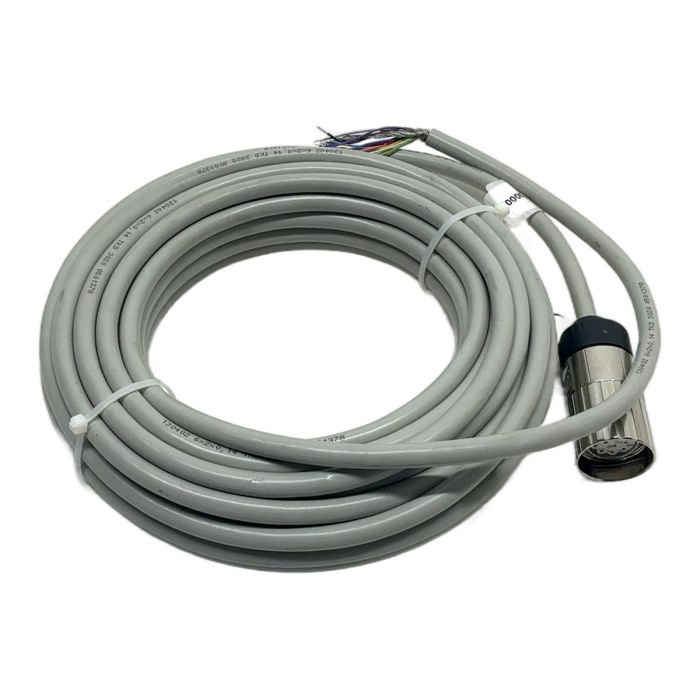

This is a pre-assembled connection cable from Kuebler, part number 8.0000.6901.0010. It is designed for connecting incremental or absolute encoders in various industrial applications. The cable features a straight, female M23 12-pin connector on one end and open-ended wires on the other, providing flexibility for wiring into control cabinets or terminals. The 10-meter length offers ample reach for most installations.

Specifications

• Manufacturer: Kuebler
• Part Number: 8.0000.6901.0010
• Product Type: Encoder Connection Cable
• Length: 10 meters
• Connector Type: M23, 12-pin, Female, Straight
• Cable Specification: 6x2x0.14 mm2, Shielded
• Cable Manufacturer: TKD
• Jacket Material: PVC

Label Info

• On Label: 8.0000.6901.0010.0031
• On Cable Jacket: 130402 6x2x0,14 TKD 3020 0501378

Application

This cable is ideal for establishing a secure and reliable connection between Kuebler encoders and control systems such as PLCs, servo drives, or frequency inverters. It is commonly used in factory automation, packaging machinery, and material handling systems.

Country of Origin

Manufactured in Germany.

CO2 Impact

By purchasing this pre-owned item, you are helping to prevent the emission of approximately 48 kg of CO2, which is equivalent to what is needed to produce a brand new unit. This saving is comparable to driving a car for 240 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The included TKD 3020 cable is a flexible control cable, but it is not specifically rated for high-cycle, continuous flex applications found in drag chains. For such use, a dedicated chain-rated cable would be recommended.

The pinout is determined by the encoder or device it connects to. Kuebler uses standard assignments for their encoders (e.g., specific pins for A, B, Z signals, 0V, and +V). Always verify the pinout diagram in your encoder's datasheet to ensure correct wiring before connecting.

When correctly screwed together with a compatible male counterpart, this type of M23 connector typically achieves an IP67 rating. This ensures it is dust-tight and protected against temporary immersion in water, making it suitable for harsh industrial environments.
