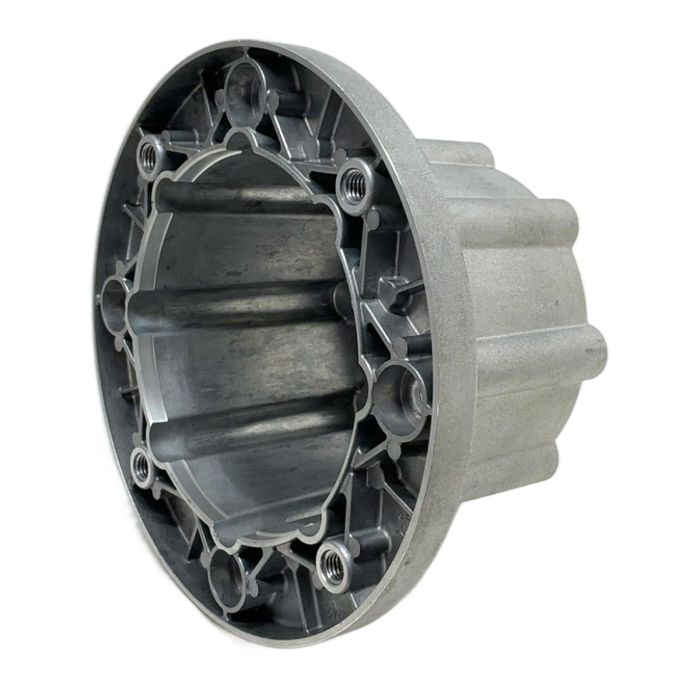

KTR Pump Mounting Flange PL200/3/11

Description

The KTR PL200/3/11 is a precision-engineered pump mounting flange, also known as a bellhousing, designed to facilitate a secure and accurately aligned connection between an electric motor and a hydraulic pump. Constructed from high-quality die-cast aluminum, this component is integral for building reliable hydraulic power units and other industrial machinery drive systems.

Specifications

• Manufacturer: KTR
• Type: Pump Mounting Flange / Bellhousing
• Model: PL200/3/11
• Material: Die-Cast Aluminium
• Motor Connection: Suitable for IEC frame size 200
• Pump Connection: Specific to model designation /3/11

Label Info

• Brand: KTR (logo cast on item)
• Part Number: PL200/3/11 (stamped on flange)

Application

This component is essential for applications in industrial hydraulics, mobile hydraulics, and general machine building where an electric motor is used to drive a hydraulic pump. It ensures drivetrain integrity, reduces vibration, and simplifies assembly.

Country of Origin

This product is manufactured by KTR Systems GmbH, originating from Germany.

CO2 Impact

Choosing this pre-owned component avoids the production of a new one, saving approximately 42.0 kg of CO2. This is comparable to the emissions from driving a car for 210 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the function of the KTR PL200/3/11?

The PL200/3/11 is a pump mounting flange, also known as a bellhousing. Its primary function is to create a rigid and precisely aligned connection between an electric motor with an IEC 200 frame size and a specific hydraulic pump, ensuring efficient power transmission.

This component is manufactured from die-cast aluminum. This material is chosen for its excellent balance of strength, low weight, and high thermal conductivity, which helps dissipate heat from the coupling and pump area.

To select the correct coupling spider (e.g., from the KTR BoWex or Rotex series), you must know the shaft diameters of both the motor and the pump. The spider's size and hub type must match these dimensions and the required torque rating for your application. Always consult the KTR catalog for compatibility.
