Krones Inductive Proximity Sensor with 30m Cable

Description

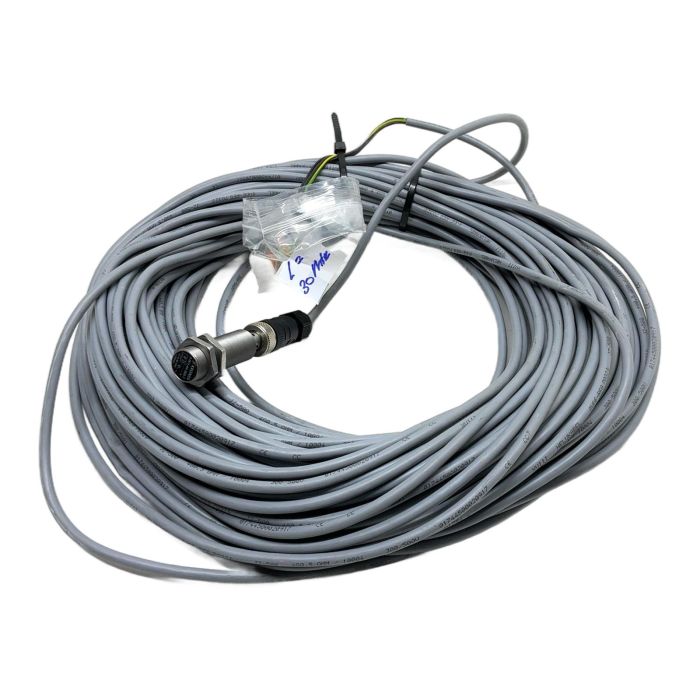

This is a genuine Krones inductive proximity sensor, model 0-901-44-369-7, designed for high-performance applications in industrial automation. It is commonly used in Krones packaging and bottling lines for precise object detection. The sensor comes with an integrated 30-meter high-quality HELUKABEL JZ-500 control cable, eliminating the need for additional junction boxes or cable extensions in large machinery.

Specifications

• Manufacturer: Krones
• Part Number: 0-901-44-369-7
• Sensor Type: Inductive Proximity
• Operating Voltage: 10 to 30 VDC
• Maximum Load Current: 200 mA
• Housing: Threaded metal body
• Cable: HELUKABEL JZ-500 4G0.5
• Cable Length: Approximately 30 meters

Label Info

• Brand: Krones
• Model: 0-901-44-369-7
• Input: U=10-30 VDC
• Output: I=200mA

Application

Ideal for position sensing, counting, and presence detection on conveyors and moving parts within large-scale industrial machinery, especially in the food and beverage industry.

Country of Origin

Manufactured in Germany.

CO2 Impact

By purchasing this pre-owned item, you help avoid the emission of approximately 4.0 kg of CO2, which is equivalent to driving a car for 20 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the switching output type of this sensor (PNP or NPN)?

The label does not explicitly state PNP or NPN. However, Krones systems and European machinery predominantly use PNP (positive switching) sensors. It is highly likely a PNP type, but it is essential to verify with the machine's electrical schematic before installation.

Yes, the HELUKABEL JZ-500 cable can be cut to the required length. Ensure you properly strip the wires and make secure connections according to your application's requirements. The cable has four conductors (4G0.5), allowing for standard 3-wire sensor connection plus a protective earth ground.

The sensor has a fully threaded metal body, which is typical for both flush (shielded) and non-flush (unshielded) types. Without the original datasheet, the exact sensing range and mounting type cannot be confirmed. For flush mounting, the sensing face must be level with the metal mounting surface. Non-flush types require a metal-free zone around the sensing head for optimal performance.
