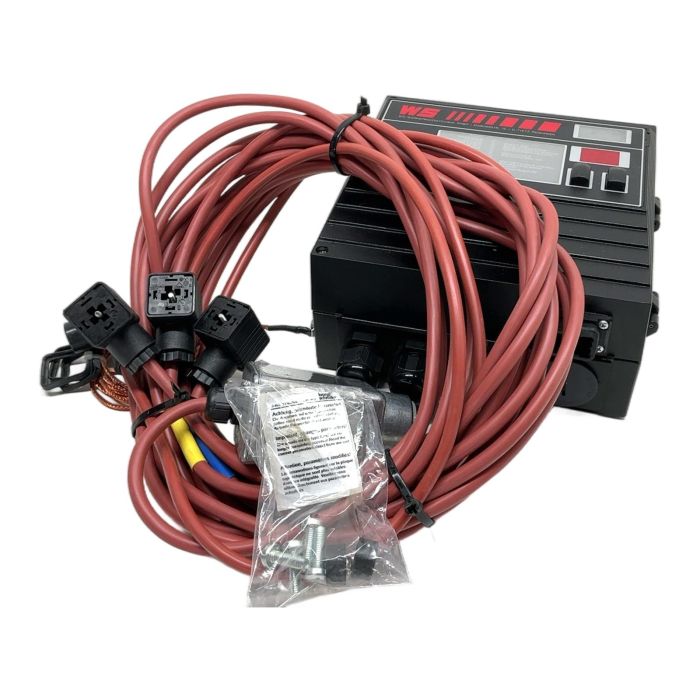

Kromschroder BCU 400 Burner Control System with UVS 1 Sensor

Description

This is a complete burner management system from Kromschroder, featuring the BCU 400 control unit. It is designed for controlling, igniting, and monitoring industrial gas burners. The package includes the main control unit, a UVS 1 UV flame detector for reliable flame supervision, and a full set of connecting cables. This unit ensures adherence to safety standards and optimizes burner performance.

Specifications

• Manufacturer: Kromschroder
• Product Family: BCU 400
• Main Unit Type: BCU 400:CBF-3/1W2B1/1
• Main Unit Part Number: 84639010
• Voltage: 230 VAC, 50/60 Hz
• Operating Temperature: -20 to +60 deg C
• Protection Class: IP54 / NEMA 3
• Included Sensor: UVS 1 UV Flame Detector (P/N: 84315010)

Label Info

• Main Unit Serial: P00001
• Main Unit Firmware: FW17AA
• Sensor Serial: C.0833 - 8087

Application

Ideal for use in industrial thermal processing applications, including furnaces, dryers, boilers, and other gas-fired heating systems where reliable and safe burner control is critical.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this reused component over a new one prevents the emission of approximately 160 kg of CO2, which is equivalent to the carbon captured by 8 trees in a year. Your purchase supports a circular economy.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The UVS 1 is an ultraviolet flame detector. Its purpose is to continuously monitor the burner flame. If the flame extinguishes unexpectedly, the UVS 1 sends a signal to the BCU 400, which then immediately shuts off the gas supply to prevent a hazardous situation.

Firmware compatibility depends on the specific requirements of your application and the existing system. While FW17AA is a standard version, it is crucial to verify with your system's documentation or a qualified technician if it's a suitable replacement for a unit with different firmware to ensure all functions operate as expected.

The BCU 400 series is versatile, but the specific configuration (CBF-3/1W2B1/1) dictates its primary settings and safety timings. Adjustments for different gas types or burner capacities are possible within certain parameters, but this should only be done by a trained combustion engineer following the manufacturer's guidelines.
