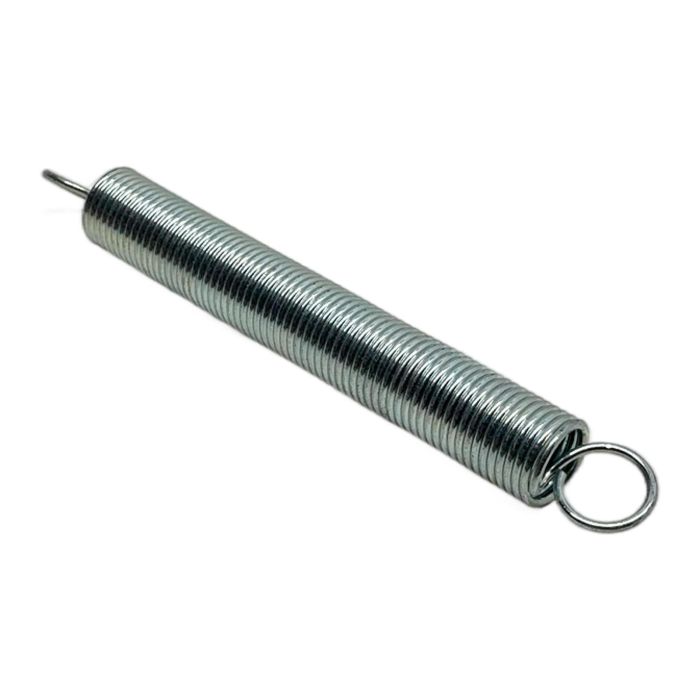

Kramp Extension Spring 15x130mm

Description

This is a robust and reliable galvanized steel extension spring, model 200182344, manufactured by Kramp. Designed for a multitude of general-purpose mechanical applications, it provides consistent tensile force. Its galvanized finish ensures superior protection against corrosion, making it ideal for both indoor and outdoor use.

Specifications

• Manufacturer: Kramp
• Part Number: 200182344
• Type: Extension Spring
• Material: Galvanized Steel
• Outside Diameter: 15 mm
• Length Over Loops (L0): 130 mm
• Wire Diameter: 1.5 mm

Label Info

• Artnr: 200182344
• Description: Trekveer galv buw 15 x 130mm
• Batch/Ref: 1607/9

Application

Suitable for various applications in agricultural machinery, gate mechanisms, industrial equipment, and general workshop repairs where a pulling force is required.

Country of Origin

Netherlands

CO2 Impact

By purchasing this reused component, you contribute to a circular economy and help avoid 0.08 kg of CO2 emissions associated with the production of a new steel spring. This saving is equivalent to charging a smartphone approximately 10 times.

Availability

In Stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

'Length (L)' or 'Body Length' typically refers to the length of the coiled section only. 'Length over loops (L0)', which is 130mm for this spring, is the total length from the outside of one end loop to the outside of the other end loop when the spring is not under tension. This is the most critical measurement for installation.

'Galv' is short for galvanized, meaning the steel has a protective zinc coating to prevent rust. 'BUW' is likely a reference to the type of end loop, in this case, a standard German loop ("ganze deutsche Ose"), which is a full, closed loop for secure attachment.

The spring rate (k) is not specified, but it can be calculated using the wire diameter (1.5mm), mean coil diameter (approx. 13.5mm), number of active coils, and the shear modulus of the steel. For precise applications, it's recommended to either test the spring's force-deflection curve or consult a detailed technical datasheet.
