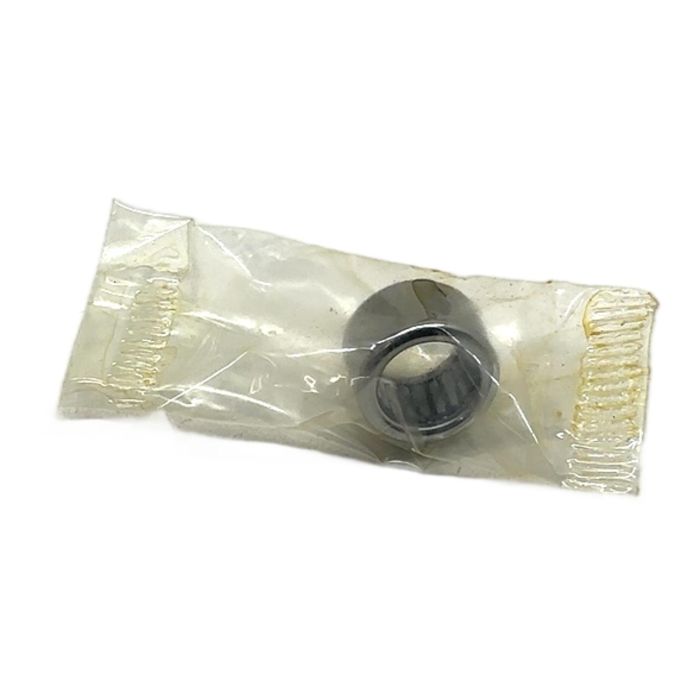

Koyo B-66 L125 Needle Roller Bearing

Description

The Koyo B-66 L125 is a high-precision drawn cup needle roller bearing designed for superior performance in demanding industrial applications. Manufactured by Koyo Torrington, this bearing offers a compact design with high radial load capacity. It is an open-end, inch series bearing, ideal for various machinery where space is a constraint.

Specifications

• Manufacturer: Koyo Torrington
• Part Number: B-66 L125
• Type: Drawn Cup Needle Roller Bearing
• Bore Diameter: 0.375 inch / 9.525 mm
• Outside Diameter: 0.5625 inch / 14.288 mm
• Width: 0.375 inch / 9.525 mm
• Ends: Open

Label Info

• Model: B-66:L125
• Part No.: TR386688
• Lube Code: 125
• Date Code: 01/17/11

Application

This bearing is commonly used in automotive transmissions, agricultural machinery, construction equipment, and general industrial applications where high rotational speeds and radial loads are present.

Country of Origin

Made in the United States.

CO2 Impact

By purchasing this reused component, you are avoiding the emission of approximately 0.01 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'L125' suffix, along with the 'Lube Code: 125' on the label, indicates a specific type of factory-applied lubricant. This is crucial for applications where re-lubrication is difficult or for ensuring compatibility with the operating environment's temperature and conditions.

The Koyo B-66 is a drawn cup needle roller bearing with open ends. This design is suitable for through-shaft applications and provides good lubricant retention while being cost-effective.

No, drawn cup needle roller bearings like the B-66 are designed exclusively for radial loads. They should not be subjected to any axial (thrust) loading. If your application has combined loads, a different type of bearing would be required.
