Klinger Schoeneberg INTEC Series Flanged Ball Valve

Description

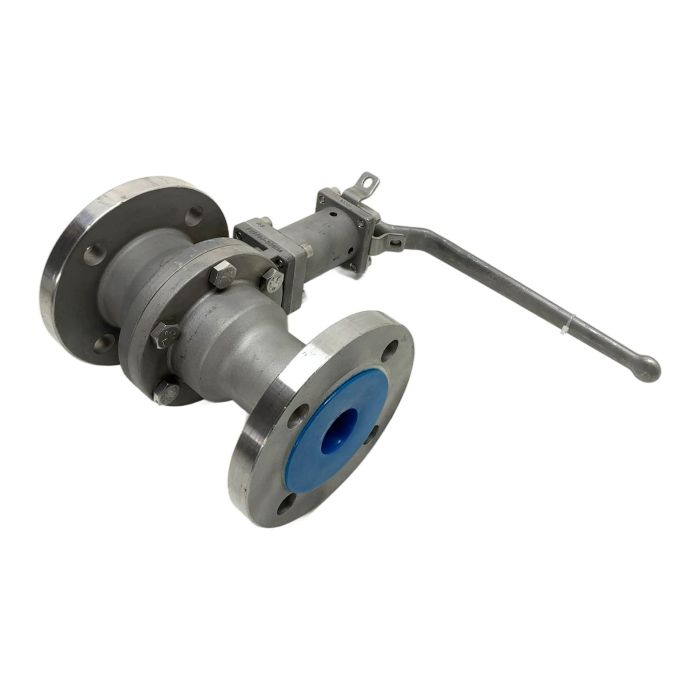

This is a high-quality flanged ball valve, model INTEC 112-FS/WFI, from the renowned manufacturer Klinger Schoeneberg. Engineered in Germany, this valve is designed for reliability and longevity in critical industrial processes. Its two-piece body construction from 1.4408 stainless steel ensures excellent resistance to corrosion and harsh media. The valve is operated via a manual lever and features an ISO 5211 F07 top flange for easy mounting of an actuator if required.

Specifications

• Manufacturer: Klinger Schoeneberg
• Model: INTEC 112-FS/WFI
• Type: 2-Piece Flanged Ball Valve
• Nominal Diameter (DN): 50 mm
• Pressure Rating (PN): 40 bar
• Body Material: Stainless Steel 1.4408 (CF8M)
• Operation: Manual Lever
• Actuator Mounting Flange: ISO 5211 F07

Label Info

• Brand: KLINGER SCHOENEBERG
• Model: INTEC 112-FS/WFI
• Size: DN50 PN40
• Material: 1.4408
• Heat/Serial Numbers: TYC421J704, 621505

Application

Ideal for use in the chemical, petrochemical, oil and gas, power generation, and general process industries. Suitable for controlling the flow of liquids, gases, and other compatible media where high performance and corrosion resistance are essential.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this reconditioned item saves an estimated 24 kg of CO2 compared to producing a new one. This saving is equivalent to driving a car for approximately 120 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

1.4408 is the cast equivalent of AISI 316 stainless steel, often referred to as CF8M. It is an austenitic chromium-nickel-molybdenum steel known for its excellent corrosion resistance, particularly against chlorides and non-oxidizing acids, making it ideal for demanding industrial and chemical environments.

F07 refers to a standardized mounting pattern according to ISO 5211. This standard ensures that actuators (like electric or pneumatic ones) from different manufacturers can be directly mounted onto the valve without needing a custom bracket, simplifying automation and maintenance.

While the 1.4408 body material can handle high temperatures, suitability for steam depends on the valve's seat material (e.g., PTFE, PEEK). Standard PTFE seats typically have a temperature limit around 200 deg C. Always consult the manufacturer's pressure-temperature chart for the specific seat material to ensure safe operation with steam.
