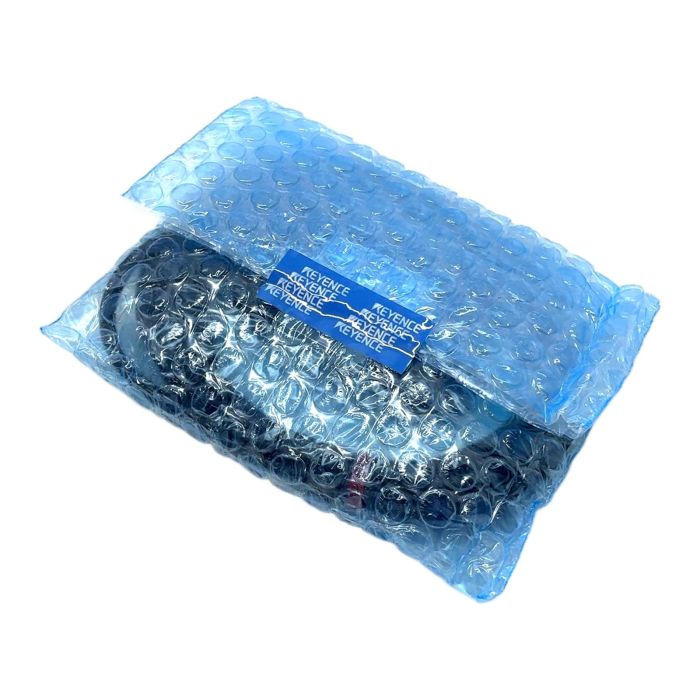

Keyence IG-1050 High-Accuracy Laser Micrometer Sensor Head

Description

The Keyence IG-1050 is a sophisticated sensor head for the IG Series of multi-purpose CCD laser micrometers. It is designed for high-precision, non-contact measurement of various dimensions like outer diameter, width, and gap analysis in automated manufacturing processes. Its high-resolution CCD and durable construction make it an ideal choice for quality control applications that demand reliability and accuracy.

Specifications

• Manufacturer: Keyence
• Model: IG-1050
• Type: High-Accuracy Sensor Head
• Measuring Range: 5 to 50 mm (0.20 to 1.97 inch)
• Transmitter-Receiver Distance: 500 mm (19.69 inch)
• Light Source: Visible red semiconductor laser, Wavelength 655 nm
• Enclosure Rating: IP67
• Ambient Temperature: 0 to +45 deg C (32 to 113 deg F)

Label Info

• Brand: KEYENCE
• Type Number: IG-1050

Application

The IG-1050 is widely used in industries such as automotive, electronics manufacturing, and metalworking for in-line dimensional inspection, position control, and process monitoring. It excels at measuring moving targets like wires, films, and machine parts with exceptional stability.

Country of Origin

Made in Japan.

CO2 Impact

Choosing this reused component helps avoid the CO2 emissions of new production, estimated at 20 kg, which is comparable to the emissions from driving a standard car for 100 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the required controller for the IG-1050 sensor head?

The IG-1050 sensor head must be connected to a dedicated Keyence IG-1000 main display unit or IG-1500 communication unit to function. It cannot operate as a standalone device.

The IG-1050 offers high repeatability, typically around +/- 1 micrometre, making it suitable for applications requiring very tight tolerances. The overall accuracy depends on the setup and application.

Yes, the sensor head has an IP67 rating, which means it is fully protected against dust ingress and can withstand immersion in water. For environments with heavy oil mist, using an optional air purge unit is recommended to keep the lens clean and ensure stable measurements.
