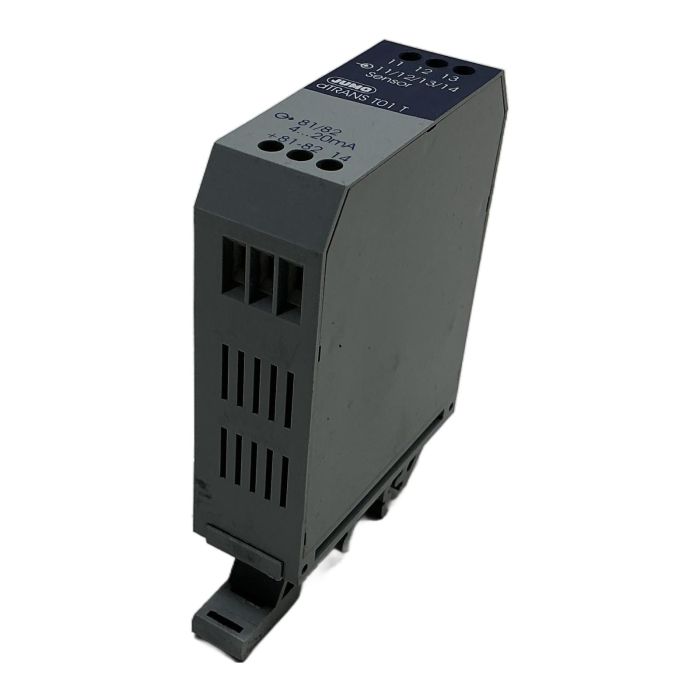

JUMO dTRANS T01 T Two-Wire Temperature Transmitter

Description

The JUMO dTRANS T01 T is a compact and reliable two-wire temperature transmitter designed for mounting on a standard DIN rail. This specific module is configured to accept a Type K thermocouple input and convert its reading into a standardized 4-20mA analog output signal, making it suitable for a wide range of industrial process monitoring and control systems. Its loop-powered design simplifies wiring and installation.

Specifications

• Manufacturer: JUMO
• Model: dTRANS T01 T
• Part Number: 70/00413021
• Power Supply: 8 to 35V DC (Loop Powered)
• Input Type: Thermocouple Type K
• Input Range: 0 to 1200 deg C
• Output Signal: 4 to 20mA
• Mounting: DIN Rail

Label Info

• Typ: (956552)707012/999-888-888
• VARTN: 70/00413021
• F-Nr: 009119260100519 0003

Application

Ideal for use in industrial automation, machine building, process control, and HVAC systems where accurate temperature measurement from a thermocouple needs to be transmitted over a distance to a PLC, controller, or data acquisition system.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this pre-owned JUMO transmitter saves an estimated 4.8 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions from driving a standard car for 24 kilometers.

Availability

This item is a used, tested component in excellent working condition. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, the dTRANS T01 T is a programmable transmitter. However, re-configuration requires the JUMO PC setup software and a specific programming interface. This unit comes pre-configured for a Type K thermocouple with a 0 to 1200 deg C range.

This is a loop-powered device. The positive side of the DC power supply connects to the transmitter's power input (terminal 14), and the transmitter's signal output (terminal 81/82) connects to the analog input of the PLC or controller. The negative side of the power supply connects to the common of the analog input, completing the 4-20mA loop.

The dTRANS T01 T is considered an obsolete product. While technical documentation is generally available online, direct manufacturer support may be limited. The JUMO dTRANS T07 series is a recommended modern alternative for new installations.
