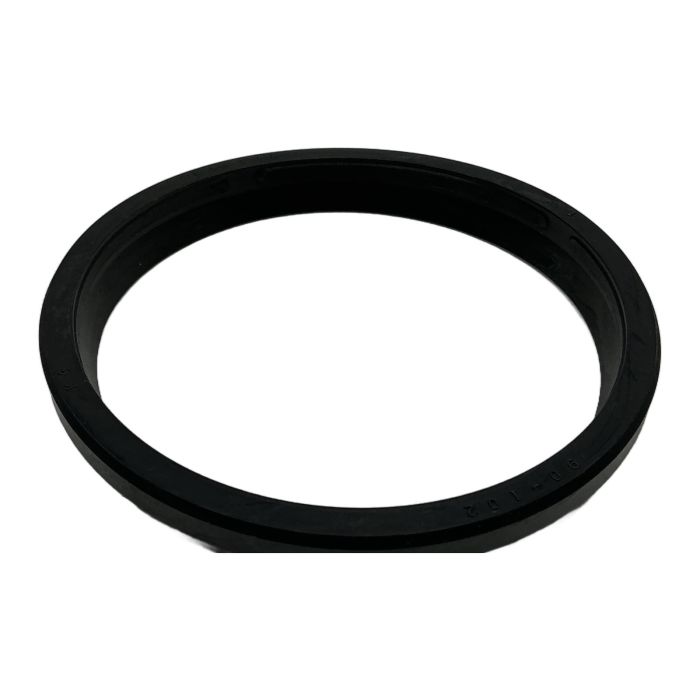

James Walker NBR Rod Wiper Seal

Description

This is a high-performance wiper seal, part number 5282956520, from James Walker. Constructed from durable NBR (Nitrile Butadiene Rubber), it is designed to provide excellent sealing and scraping performance in hydraulic and pneumatic applications. It effectively prevents the ingress of dust, dirt, and moisture, protecting internal system components and extending their operational life.

Specifications

• Manufacturer: James Walker
• Type Number: RS 5282956520
• Material: NBR (Nitrile Butadiene Rubber)
• Inner Diameter: 90 mm
• Outer Diameter: 102.2 mm
• Height / Width Profile: 7.1 mm x 12 mm

Label Info

• Art.: 5282956520
• Desc. Art.: JOINT RACLEUR-RS-NBR-DI 90 MM-DE 102.2 MM-HL 7.1 X 12 MM

Application

Ideal for use as a rod seal in a wide range of industrial hydraulic and pneumatic cylinders, particularly where resistance to mineral oils and greases is required.

CO2 Impact

Choosing this reused component saves approximately 0.3 kg of CO2 compared to a new one, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Its main purpose is to scrape dirt, dust, moisture, and other contaminants from the piston rod as it retracts into a hydraulic or pneumatic cylinder. This prevents abrasive particles from damaging other seals, the rod surface, and internal components, thereby extending the service life of the system.

NBR (Nitrile Butadiene Rubber) offers excellent resistance to most mineral oil-based hydraulic fluids, fats, and greases. However, it is not recommended for use with synthetic fluids like Skydrol, brake fluids (glycol-based), or fluids with high aromatic content, as these can cause the NBR material to swell and degrade.

These dimensions define the seal's geometry: 90 mm is the inner diameter (DI), which corresponds to the piston rod diameter. 102.2 mm is the outer diameter (DE), which fits into the cylinder housing groove. The 7.1 mm and 12 mm likely refer to the seal's axial height (HL) and overall width, respectively, which are critical for ensuring a correct fit and function within the seal groove.
