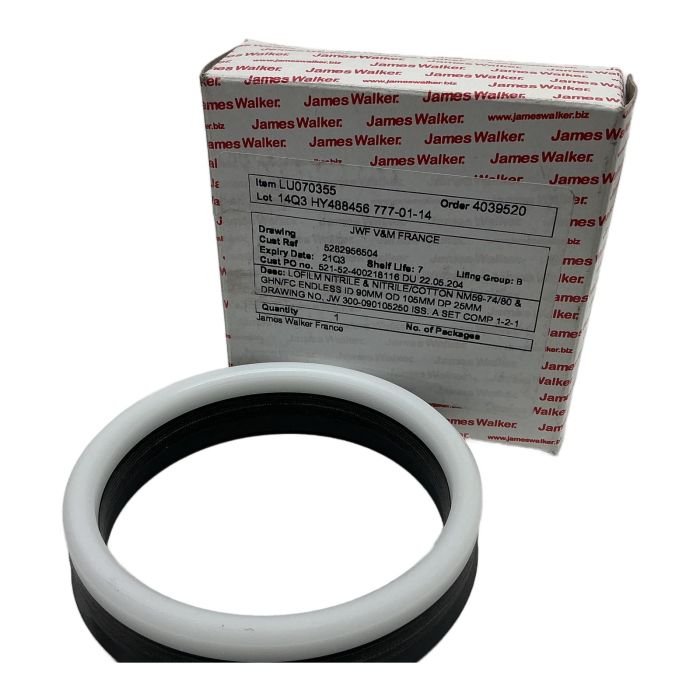

James Walker Hydraulic Seal Set LU070355

Description

This is a high-quality, multi-component hydraulic seal set from James Walker, identified by item number LU070355 and drawing number JW 300-090105250. The set is engineered for reliable performance in demanding hydraulic applications. It features a combination of advanced materials, including Lofilm Nitrile and Nitrile/Cotton composites, to ensure low friction, excellent durability, and superior sealing capability.

Specifications

• Manufacturer: James Walker
• Item Number: LU070355
• Drawing Number: JW 300-090105250
• Inner Diameter (ID): 90 mm
• Outer Diameter (OD): 105 mm
• Depth (DP): 25 mm
• Materials: Lofilm Nitrile & Nitrile/Cotton NM59-74/80 & GHN/FC
• Type: Endless multi-part seal set

Label Info

• Lot: 14Q3 HY488456 777-01-14
• Order: 4039520
• Cust Ref: 5282956504

Application

This seal set is designed for use in hydraulic cylinders and actuators, providing a robust sealing solution for piston or rod applications where reliability and long service life are critical.

Country of Origin

France

CO2 Impact

Choosing this new-old-stock seal set prevents the emission of approximately 3.5 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the carbon captured by a tree in several months.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Lofilm is a proprietary material from James Walker designed for low-friction applications. The inclusion of Lofilm Nitrile indicates that one or more components of the seal set are engineered to reduce stick-slip and operating friction, which improves efficiency and extends the service life of the hydraulic system.

The material composition, including fabric-reinforced Nitrile/Cotton, suggests this seal set is designed for medium to high-pressure applications. However, the exact pressure rating depends on the specific application design (e.g., extrusion gaps, fluid type, and temperature). It is always best to consult the original equipment manufacturer's specifications.

"SET COMP 1-2-1" likely refers to the composition and arrangement of the seal components. This code is internal to the manufacturer or customer and indicates a specific stack-up or order of the individual rings within the set. It is crucial to install the components in the correct sequence and orientation as specified by the equipment's service manual to ensure proper function.
