James Walker Hydraulic Chevron V-Packing Seal Set

Description

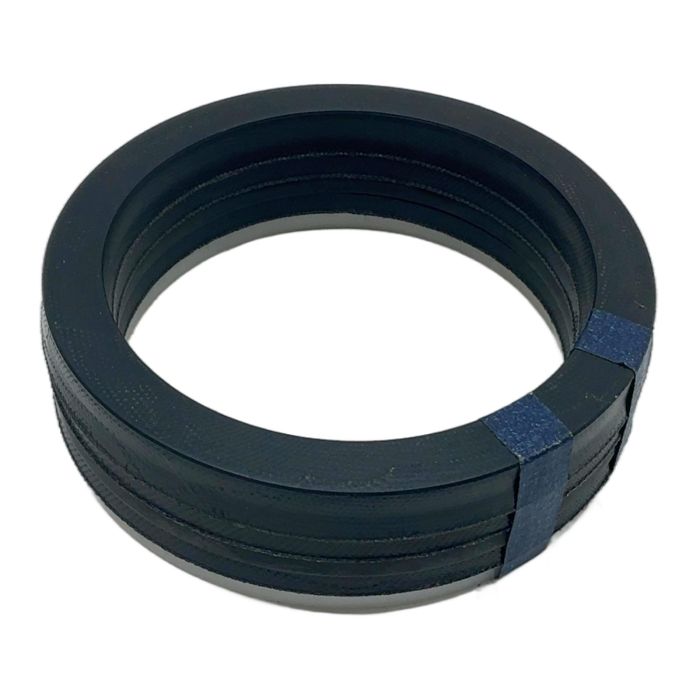

This is a Chevron V-packing hydraulic seal set from James Walker, designed for sealing rods, pistons, and plungers in high-pressure hydraulic applications. The set consists of multiple V-shaped rings that provide a robust and reliable seal. This item is new old stock, coming in its original packaging from the year 2012.

Specifications

• Manufacturer: James Walker
• Product Type: Chevron V-Packing Seal Set
• Model: Chevron GC
• Material: NBR (Nitrile Butadiene Rubber)
• Inner Diameter: 76.20 mm (3 inches)
• Outer Diameter: 95.25 mm (3.75 inches)
• Height: 25.52 mm

Label Info

• Article Number: 5282955634
• Description: JOINT HYDRAULIQUE-CHEVRON GC-NBR

Application

Ideal for use in hydraulic cylinders, presses, and other heavy-duty industrial equipment requiring a durable dynamic seal.

CO2 Impact

Choosing this reused component saves an estimated 3.8 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 19 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Chevron V-packing seals are designed for high-pressure, dynamic sealing applications, typically in hydraulic cylinders, rams, and presses. They are excellent for sealing rods and pistons in heavy-duty industrial equipment.

NBR (Nitrile Butadiene Rubber) offers excellent resistance to most mineral-based hydraulic oils, fats, and greases. However, it is not recommended for use with glycol-based fluids, brake fluids, or fluids with high aromatic content. Always verify chemical compatibility with your specific hydraulic medium.

A Chevron set consists of a male adapter (pressure ring), several V-rings, and a female adapter (support ring). They must be installed in the correct sequence and orientation. The 'V' of the rings should always face the direction of the pressure to ensure they energize and seal effectively. Improper installation can lead to premature failure.
