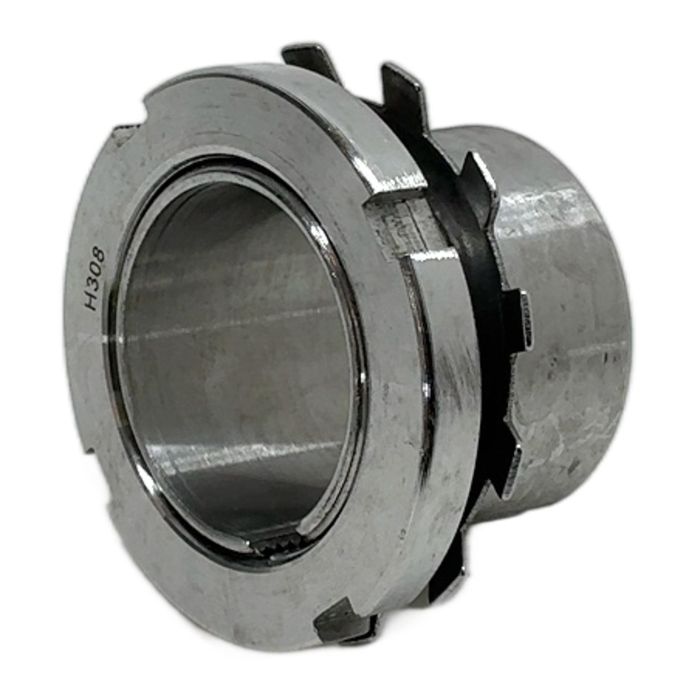

ISB H308 Adapter Sleeve for 35mm Shaft

Description

The ISB H308 is a high-quality adapter sleeve designed for mounting bearings with a tapered bore onto a cylindrical shaft seat. It allows for the use of standard shafts and facilitates easy mounting and dismounting of bearings without the need for a shoulder or tight fit. This component is essential for ensuring a secure and precise fit in a wide range of industrial applications.

Specifications

• Shaft Diameter: 35 mm
• Model: H308
• Material: Steel
• Compatible Bearings: Suitable for various bearing series with a 1:12 taper, such as 1208K, 2208K, and 22208K.

Label Info

• Manufacturer: ISB
• Part Number: H308

Application

This adapter sleeve is widely used in industrial machinery, conveyor systems, agricultural equipment, fans, and pumps where secure bearing mounting on smooth or stepped shafts is required.

Country of Origin

Manufactured by ISB in Italy.

CO2 Impact

By purchasing this reused component, you are avoiding the emission of approximately 0.34 kg of CO2. This saving is equivalent to the energy needed to drive a car for 1.7 kilometers or charge a smartphone over 40 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What are the required mating components for a complete H308 mounting assembly?

For a complete assembly, you typically need the H308 adapter sleeve, a corresponding KM8 lock nut, and an MB8 lock washer. These components are usually sold separately.

The correct procedure involves tightening the lock nut until the bearing's internal radial clearance is reduced by a specific amount. This should be measured with a feeler gauge. Refer to the bearing manufacturer's handbook for the exact clearance reduction values for your specific bearing type to avoid preloading and premature failure.

No, they are not interchangeable. While both are for a 35mm shaft, the '3' and '2' in the model number denote different dimensional series designed to match different series of bearings (e.g., H3xx for 222xx K series, H2xx for 22xx K series). They have different outer diameters and tapers and are not compatible.
