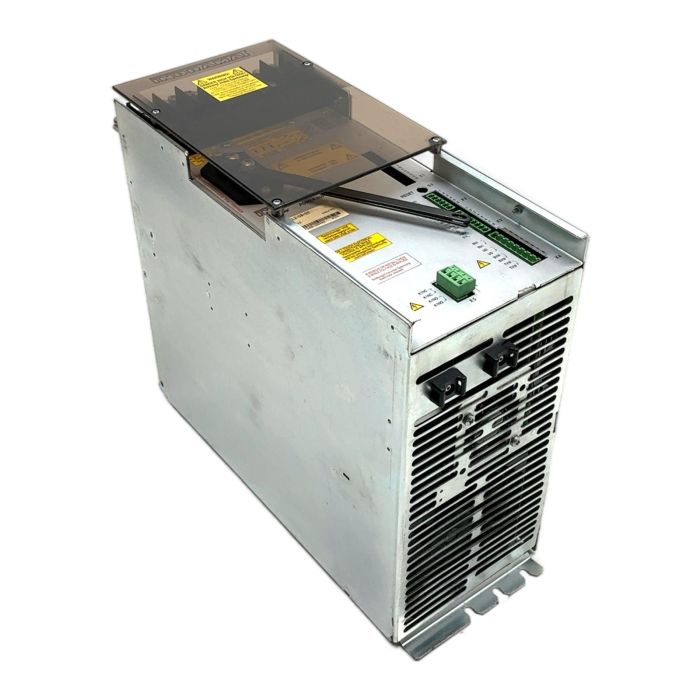

Indramat TVD 1.2-08-03 Servo Power Supply

Description

The Indramat TVD 1.2-08-03 is a highly reliable AC servo power supply module from the DIAX02 series. It is engineered to convert 3-phase AC input voltage into a stable DC bus voltage, providing power for multiple Indramat TDM or MDD servo drives. This unit is an essential component for legacy motion control systems, known for its durability and performance in demanding industrial environments. This listing includes the main power supply unit and an accompanying bus connection cable (P/N 244830).

Specifications

• Manufacturer: Indramat
• Model: TVD 1.2-08-03
• Part Number: 246503
• Series: DIAX02
• Input Voltage: 3 x 380-460 VAC (+/- 10%), 50-60 Hz
• Rated Current: 8 A
• DC Bus Output Voltage: 300 VDC
• Condition: Used, tested
• Included Accessories: Bus connection cable (P/N: 244830)

Label Info

• Type: TVD 1.2-08-03
• Part No: 246503
• Serial No: SN247368-05981

Application

This power supply is commonly used in CNC machinery, packaging lines, robotics, and automated manufacturing systems that utilize the Indramat DIAX02 drive family.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this refurbished item, you are saving an estimated 150.0 kg of CO2, which is comparable to the emissions of driving a car for 750 km.

Availability

Available from stock for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The TVD 1.2 series, like this unit, is the earlier version within the DIAX02 family. The TVD 1.3 series introduced some internal hardware and firmware updates for improved performance and diagnostics, but they are generally not interchangeable without system adjustments. Always verify compatibility with your specific drive controllers.

These LEDs provide basic diagnostics. H1 (Power OK) indicates the internal control voltages are present. H2 (Overcurrent) signals a short circuit or excessive current draw. H3 (Bleeder Overload) indicates the internal braking resistor is overloaded. H4 (Temp Fault) shows an over-temperature condition in the power supply or connected drives.

The TVD 1.2-08-03 has a built-in braking resistor (bleeder) to dissipate regenerative energy. For applications with high inertia or frequent, rapid decelerations, an external braking resistor (connected to RB1/RB2 terminals) may be necessary to handle the excess energy and prevent overvoltage faults.
