Indramat DDS03.1-W030-D AC Servo Controller

Description

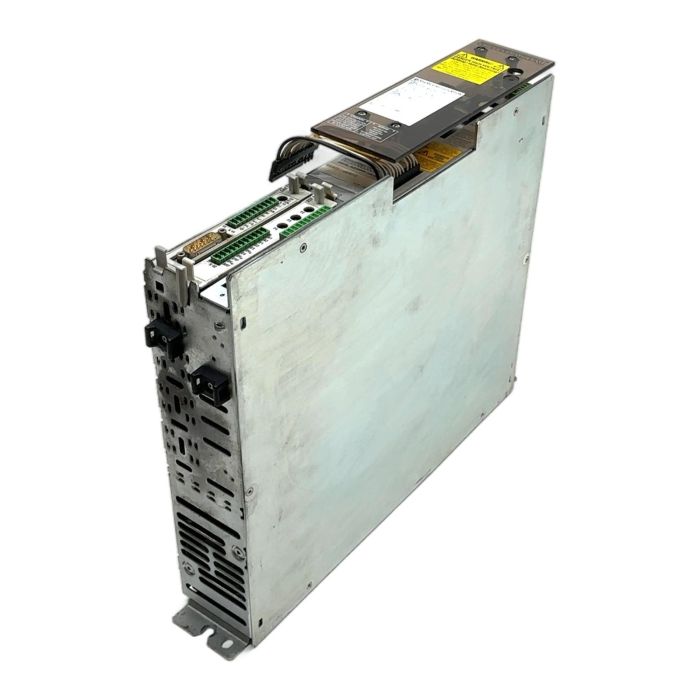

This is a digital AC servo controller, model DDS03.1-W030-D, manufactured by Indramat (now Bosch Rexroth). Part of the highly reliable DDS drive family, this unit is designed to provide precise control of AC servo motors in demanding industrial environments. It operates on a 300 VDC bus input and delivers a rated current of 30A. This controller is a key component for maintaining and repairing legacy automation systems.

Specifications

• Manufacturer: Indramat (Bosch Rexroth)
• Product Series: DDS 3.1
• Model: DDS03.1-W030-D
• Rated Current: 30 A
• DC Bus Input Voltage: 300 VDC
• Cooling: Natural Convection
• Condition: Used, tested

Label Info

• System Configuration: DDS3.1-W030-DA11-00
• Firmware U1: DAE 1.1
• Firmware U2: DSE 1.1
• Module U5: DSM 2.1 EM-01 RS

Application

The DDS series servo drives are commonly found in applications requiring high accuracy and dynamic performance, such as CNC machine tools, printing machinery, packaging lines, and material handling systems.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this refurbished component, you are avoiding the 200 kg of CO2 emissions associated with the production of a new one. This is a significant contribution to sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What firmware is typically installed on the DAE and DSE modules for this DDS drive?

The DAE 1.1 and DSE 1.1 modules mentioned on the configuration label are standard firmware modules. The specific functionality depends on the command interface module (e.g., SERCOS, analog) used. It is crucial to ensure the firmware versions are compatible with your existing system and command module.

While the IndraDrive HCS series is the modern functional equivalent, a direct swap is not possible. It requires significant re-engineering, including changes to wiring, programming (from DriveTop to IndraWorks), and potentially the motor feedback cables. It is not a plug-and-play replacement.

This drive requires a 300 VDC input voltage for the DC bus, as indicated on the label. This voltage is typically supplied by a separate Indramat power supply module (e.g., TVM, TVR, or KDV series) which converts the AC mains input to the required DC bus level.
