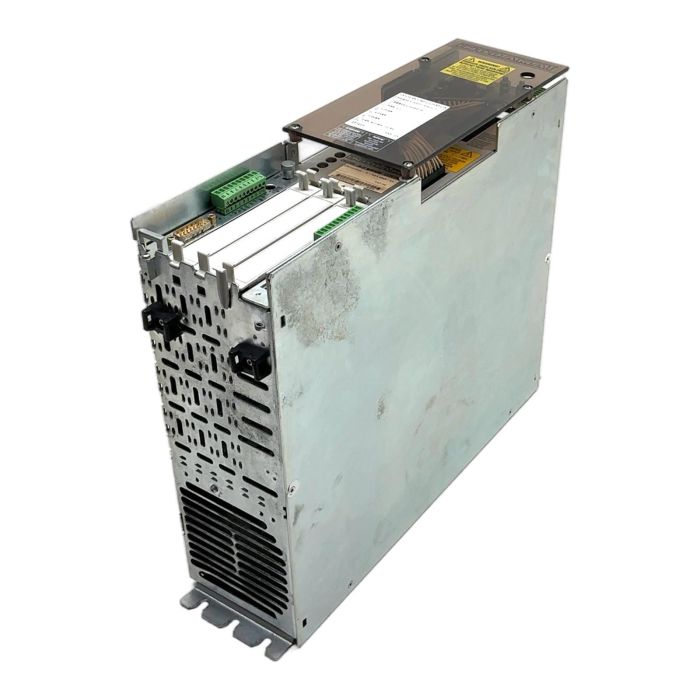

Indramat DDS02.1-W100-D AC Servo Controller

Description

The Indramat DDS02.1-W100-D is a high-performance digital AC servo controller designed for demanding industrial applications. As a key component of the Indramat drive system, it provides precise and dynamic control of AC servomotors. This unit is rated for 100A and features a modular design, allowing for customization with various plug-in modules. This specific controller comes equipped with a DAE 1.1 analog module and a DSM 2.1-E11-01.RS digital feedback module, making it suitable for a wide range of motion control tasks.

Specifications

• Manufacturer: Indramat (Bosch Rexroth)
• Product Series: DDS
• Model: DDS02.1-W100-D
• Current Rating: 100 Amperes
• Type: Digital AC Servo Controller
• Cooling: Internal Blower

Label Info

• Controller Type: DDS02.1-W100-D
• System Configuration: DDS02.1-W100-DA01-00
• Module U1: DAE 1.1
• Module U5: DSM 2.1-E11-01.RS

Application

This servo controller is commonly used in legacy systems for applications requiring high precision and reliability, such as CNC machining centers, robotics, printing presses, and automated packaging lines.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this used servo drive over a new one saves an estimated 240 kg of CO2 emissions. This saving is a significant contribution to sustainable industrial practices, helping to reduce the environmental footprint of manufacturing.

Availability

This is a used, tested item in good working condition. It is an ideal spare part for maintaining existing machinery and preventing costly downtime. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the firmware version of this DDS drive?

The specific firmware version is not explicitly stated on the labels, but the system configuration `DA01-00` and module `DAE 1.1` provide key hardware revision information. Compatibility should be checked against your existing system parameters.

Yes, the Indramat DDS series are servo drive controllers that operate from a DC bus voltage. They must be connected to a compatible Indramat power supply module (e.g., TVM, KDV, or TVD series) for operation.

Yes, the DDS platform is modular. The DSM 2.1 module is for digital servo feedback. It can be replaced with other compatible modules for different encoder types (e.g., resolver, sinusoidal), but this may require parameter adjustments in the control system.
