Indramat AC Servo Drive 100A DDS02.1-W100-D

Description

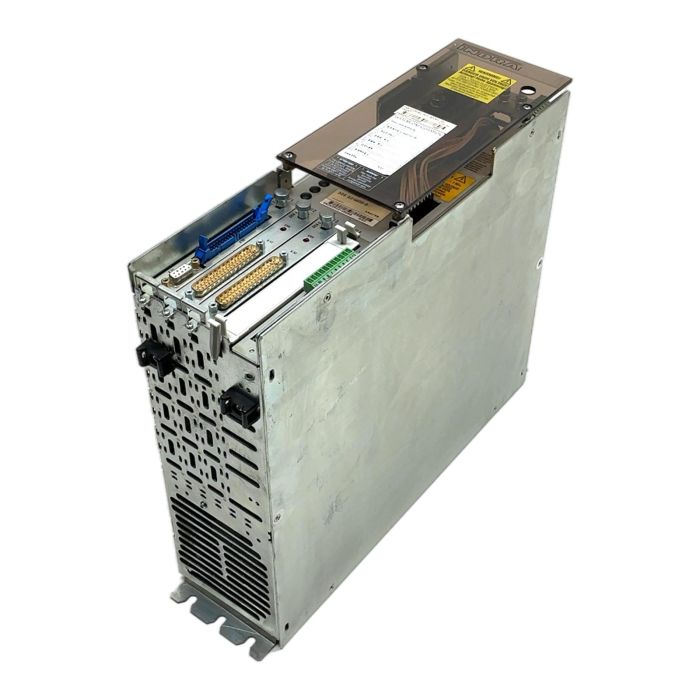

This Indramat DDS02.1-W100-D is a digital AC servo drive controller from the renowned DIAX02 series. Although an obsolete model, it remains a critical component for maintaining existing machinery in various industries. With a rated current of 100A, it is built to handle high-power applications requiring precise motion control. This unit comes as a pre-configured system, ensuring component compatibility and simplifying integration.

Specifications

• Manufacturer: Indramat (Bosch Rexroth)
• Model: DDS02.1-W100-D
• Series: DIAX02
• Rated Current: 100A
• Input Voltage: 3-phase AC
• Control Type: Digital Servo Control

Label Info

• System Configuration: FWA-DIAX02-DLG-03URS-MS
• Part Number (System): 266437
• Serial Number (Drive): SN263502-18688
• Module U1: DLC01.1
• Module U2: DEA 4.1
• Module U3: DEA 5.1
• Module U5: DSM02.1

Application

This servo drive is commonly used in machine tools, printing presses, packaging machinery, and automated assembly lines that rely on the Indramat DIAX02 control platform.

Country of Origin

Made in Germany

CO2 Impact

Reusing this drive saves an estimated 480 kg of CO2, equivalent to driving 2400 km in a car. Choosing refurbished parts is a sustainable choice for your business and the planet.

Availability

This is a used, tested item, available for immediate dispatch. Ideal for spare parts or replacing a faulty unit to minimize downtime. Order now from PLC2Day for expert support and fast delivery.

FAQ

The firmware is part of the system configuration FWA-DIAX02-DLG-03URS-MS. The label indicates DDS02.1-W100-DL02-01-FW, suggesting the firmware type. Exact version details can be read out upon commissioning.

Compatibility depends on the installed communication modules. This unit includes a DSM02.1 module, which needs to be verified for its specific communication protocol. The DIAX02 series had options for SERCOS, analog, and other interfaces.

Yes, the modules in the DDS drive are generally swappable with identical part numbers. However, it is crucial to ensure the replacement module's firmware and hardware versions are compatible with the drive and your machine's parameters.
