Linear Guide Rail

Product Description

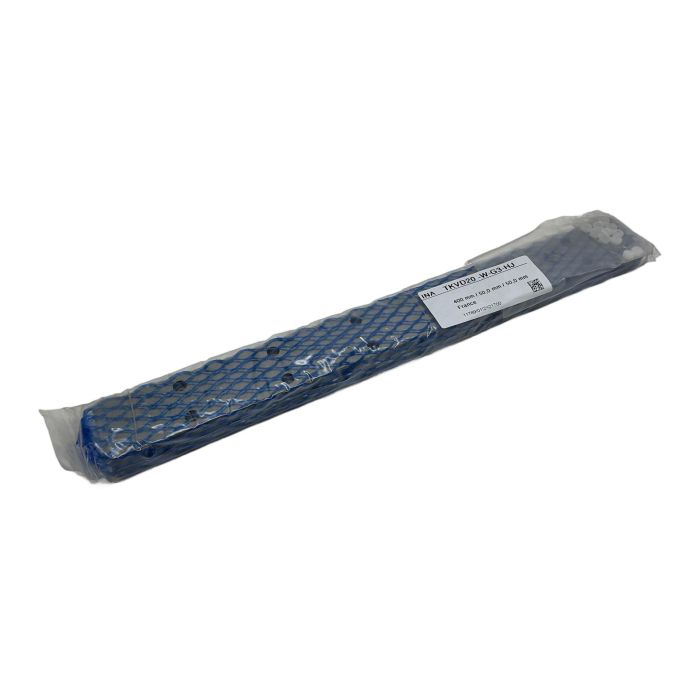

This is an INA TKVD20-W-G3-HJ linear guide rail, a high-precision component designed for demanding linear motion applications in industrial automation, CNC machinery, and robotics.

Product Specifications

- Manufacturer: INA (a brand of the Schaeffler Group)
- Type Number: TKVD20-W-G3-HJ
- Product Type: Linear Guideway / Profile Rail
- Series: TKVD20
- Design: Four-row, for full complement ball assemblies
- Length: 400 mm
- Hole Spacing: 50.0 mm / 50.0 mm
- Accuracy Class: G3 (Standard)
- Suffix -W: Through-hardened steel
- Suffix -G3: Denotes accuracy class
- Suffix -HJ: May specify a particular end configuration or feature

Product Label Info

Model Code / Product Markings: TKVD20-W-G3-HJ

SKU: 2603031008

GTIN-13: 4054366886859

Application

Ideal for use in industrial automation, CNC machinery, robotics, and measuring equipment.

Country of Origin

This product is manufactured in France.

Method of Application

Designed for reliable and smooth linear motion guidance in various applications.

Safety Instructions

No specific safety instructions provided.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page INA

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from INA
• Explore similar products in Automation

Frequently Asked Questions

What is the Linear Guide Rail used for?

This part is typically used in industrial automation, CNC machinery, and robotics applications. It provides reliable and accurate linear motion guidance.

What are the key advantages of Linear Guide Rail?

High precision, exceptional rigidity, and load-carrying capacity.

Is TKVD20-W-G3-HJ compatible with my system?

If you're using INA components or similar linear guide systems, this model will likely be compatible. Contact us to verify.

Alternatives to TKVD20-W-G3-HJ

Consider other linear guide rail models from INA or compatible brands for similar functionality.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2DAY accepts surplus stock for resale. Contact us for more information.

Need Help?

Call us at +31(0)165 20 11 80 or get in touch online.
