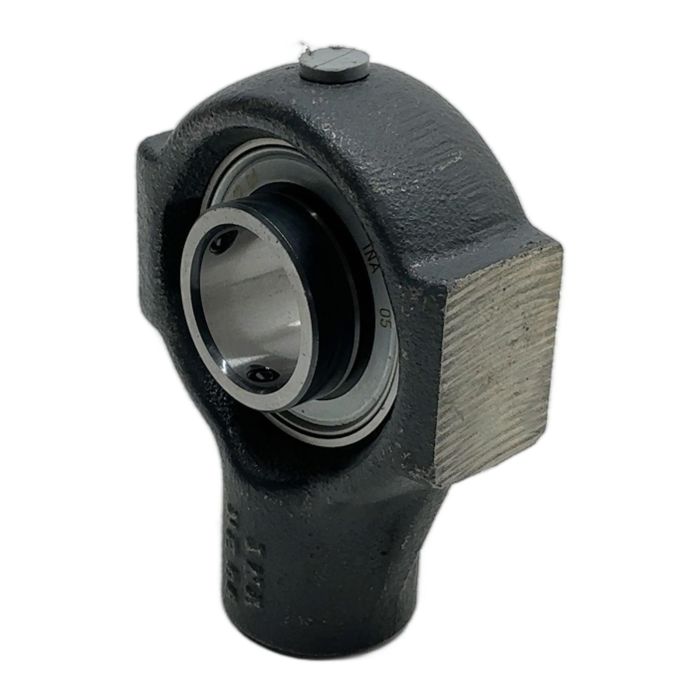

INA PHEY30 Take-up Bearing Unit

Description

The INA PHEY30 is a high-quality cast iron take-up bearing unit designed for applications requiring shaft position adjustment and belt tensioning. It houses a radial insert ball bearing (GRAE30-NPP-B) with an eccentric locking collar for easy and secure mounting. The unit is relubricatable via a grease nipple, and its robust P-seals on both sides provide excellent protection against contamination, extending its operational lifespan.

Specifications

• Manufacturer: INA (Part of the Schaeffler Group)
• Model: PHEY30
• Bore Diameter: 30 mm
• Housing Material: Cast Iron
• Bearing Insert: GRAE30-NPP-B
• Locking Mechanism: Eccentric locking collar
• Sealing: P-seals on both sides

Application

Ideal for use in conveyor systems, agricultural machinery, and various material handling equipment where reliable tensioning and alignment are critical.

Country of Origin

Germany

CO2 Impact

Reusing this component saves approximately 2.1 kg of CO2 compared to manufacturing a new one. This choice supports a circular economy and reduces industrial waste.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the proper lubrication procedure for the INA PHEY30?

The unit should be lubricated with a high-quality lithium-based grease. The frequency depends on the operating conditions (speed, load, contamination levels), but a general guideline is to follow the machinery manufacturer's maintenance schedule.

Can the GRAE30-NPP-B insert bearing be replaced separately from the PHEY30 housing?

Yes, the insert bearing is a standard component and can be replaced independently of the cast iron housing, making maintenance more cost-effective.

What is the maximum operating temperature for this take-up unit?

The continuous operating temperature range for this unit with its standard grease and seals is typically from -20 deg C to +120 deg C.
