INA KWVE25-B-H V1-G3 Linear Guide Carriage

Description

The INA KWVE25-B-H V1-G3 is a high-performance, four-row linear recirculating ball bearing and guideway assembly carriage. It is designed to provide high load-carrying capacity, exceptional rigidity, and precise linear motion in industrial automation and machine tool applications. This component is known for its durability and smooth operation, making it a reliable choice for demanding systems.

Specifications

• Manufacturer: INA (Schaeffler Group)
• Model: KWVE25-B-H
• Grade: V1-G3
• Size: 25 mm rail compatibility
• Type: Four-row ball type carriage
• Design: High, standard length carriage (-B-H)
• Preload Class: V1 (Light Preload)
• Accuracy Class: G3

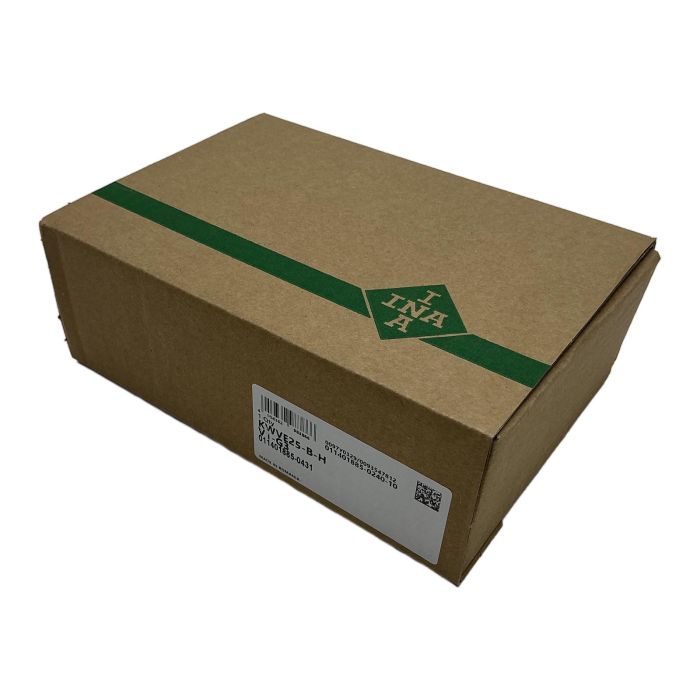

Label Info

• Part Number: 011401885-0431
• EAN: 4054362983866

Application

This linear guide carriage is ideal for applications requiring precision and high stiffness, such as CNC machining centers, industrial robots, measurement equipment, and automated assembly lines.

Country of Origin

Made in Romania.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and avoiding approximately 0.9 kg of CO2 emissions associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What type of guideway rail is compatible with the KWVE25-B-H carriage?

This carriage is designed for use with INA KUVE25-B series guideway rails. Compatibility with rails from other manufacturers is not guaranteed and may affect performance and accuracy.

The 'V1' suffix indicates a light preload class, which reduces clearance for increased rigidity and precision. The 'G3' suffix denotes the accuracy grade of the carriage, with G3 being a standard level of precision suitable for many industrial applications.

The carriage is delivered with an initial preservation oil. For operation, it must be lubricated using a high-quality grease suitable for linear guides, such as Schaeffler's Arcanol series. Lubrication should be applied through the grease nipple on the carriage according to the maintenance schedule of your application.
