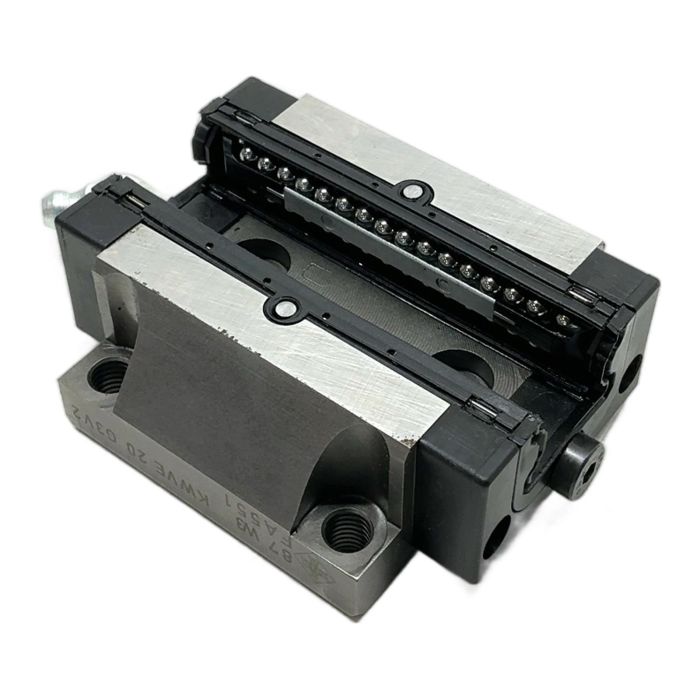

INA KWVE 20 G3V2 Linear Guide Carriage

Description

The INA KWVE 20 G3V2 is a high-precision, six-row linear recirculating ball bearing and guideway assembly carriage. Engineered by the Schaeffler Group, it is designed to provide exceptional rigidity, load-carrying capacity, and travel accuracy for demanding industrial applications. This component is ideal for use in machine tools, automation systems, and precision robotics.

Specifications

• Manufacturer: INA (Schaeffler Group)
• Model: KWVE 20 G3V2
• Type: Linear Guide Carriage
• Nominal Size: 20 mm
• Preload Class: G3 (Medium Preload)
• Accuracy Class: V2 (High Accuracy)
• Design: Flanged block, normal length

Label Info

• INA
• KWVE 20 G3V2
• 87 WB
• FA551

Application

This linear guide carriage is suitable for applications requiring high precision and load capacity, such as CNC milling machines, industrial robots, automated assembly lines, and measuring equipment.

Country of Origin

Germany

CO2 Impact

By purchasing this reused component, you are helping to avoid approximately 0.8 kg of CO2 emissions associated with the production of a new one. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This carriage is designed for use with INA TKVD20 series profile rails. Compatibility with rails from other manufacturers is not guaranteed and should be verified based on dimensional drawings.

The 'G3' indicates a medium preload class, which provides a good balance between rigidity and low friction. The 'V2' signifies a high accuracy class, ensuring precise and repeatable motion.

It is recommended to use a high-quality lithium soap-based grease, such as Schaeffler's Arcanol series, applied via the integrated lubrication nipple to ensure long service life and optimal performance.
