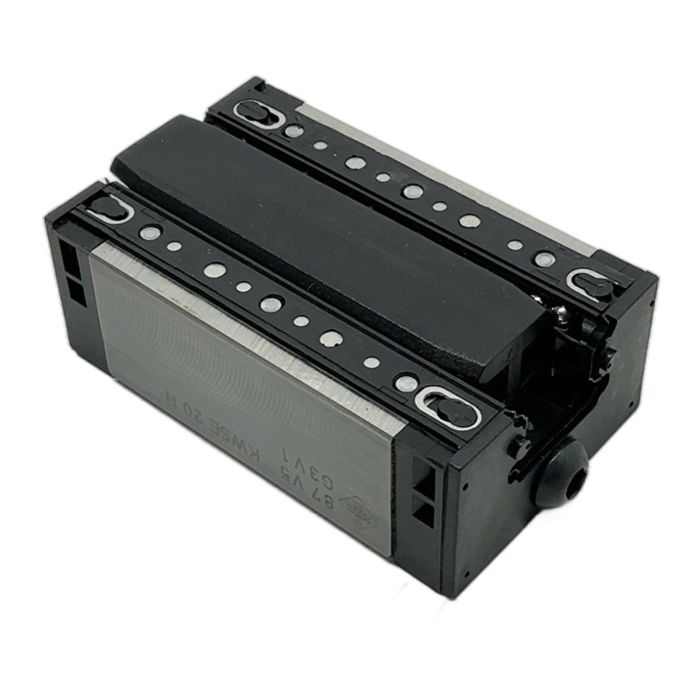

INA Linear Guide Block KWSE 20 H G3V1

Description

This is a high-performance linear guide carriage, model KWSE 20 H G3V1, from INA (Schaeffler Group). It is a four-row recirculating ball bearing unit designed for linear guideways of size 20. This carriage is known for its high load-carrying capacity, extreme rigidity, and precision, making it suitable for demanding applications in machine tools, robotics, and automation equipment.

Specifications

• Manufacturer: INA (Schaeffler Group)
• Type: KWSE 20 H G3V1
• System: Four-row linear recirculating ball bearing unit
• Size: 20 (for 20mm profile rail)
• Carriage Design: H (High, narrow design)
• Accuracy Class: G3
• Preload Class: V1 (Light preload)

Label Info

• Brand: INA
• Model: KWSE 20 H
• Codes: 87 V5, G3V1

Application

Ideal for linear motion systems requiring high precision and rigidity, such as CNC milling machines, lathes, grinding machines, and automated handling systems.

Country of Origin

Germany

CO2 Impact

By purchasing this reused component, you are avoiding approximately 0.8 kg of CO2 emissions associated with the manufacturing of a new part. This is a sustainable choice for your machinery maintenance.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

V1 indicates a light preload. This provides a good balance between rigidity and low friction, suitable for general applications. Higher preloads (V2, V3) offer more rigidity but also higher friction and are used in high-precision machining applications.

Lubrication frequency depends heavily on the operating conditions (speed, load, environment). It's crucial to follow the machine manufacturer's maintenance schedule or Schaeffler's guidelines. The integrated grease nipple allows for easy relubrication.

No, it is strongly advised against. Linear guide carriages and rails are manufactured as matched pairs with extremely tight tolerances. Using an INA carriage on a non-INA rail will result in poor performance, premature wear, and potential system failure.
