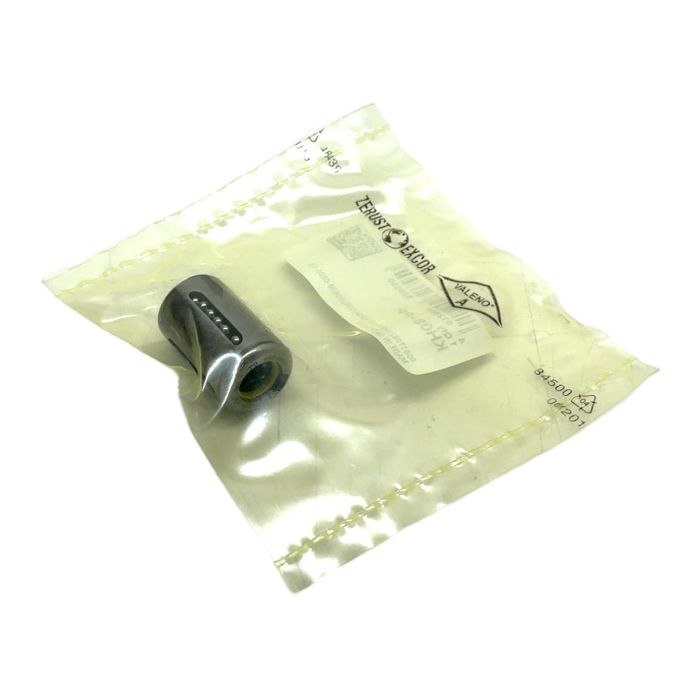

INA KH08-PP Linear Ball Bearing for 8mm Shafts

Description

The INA KH08-PP is a high-precision, compact linear ball bearing bush designed for linear motion applications. Manufactured in Germany by INA, a brand of the Schaeffler Group, this component guarantees quality and reliability. It is designed for use with an 8mm diameter shaft and features double-sided contact seals to provide excellent protection against contamination and prevent lubricant leakage.

Specifications

• Manufacturer: INA (Schaeffler Group)
• Part Number: KH08-PP
• Product Type: Linear Ball Bearing Bush
• Series: KH Compact Series
• Inner Diameter (Shaft Size): 8 mm
• Outer Diameter: 15 mm
• Length: 24 mm
• Sealing: Double-sided contact seals (PP designation)

Label Info

• Model: KH08-PP
• EAN: 4012802326550

Application

This linear bearing is ideal for a wide range of applications requiring precise linear movement, including 3D printers, CNC machinery, robotics, measurement equipment, and general automation systems.

Country of Origin

Made in Germany

CO2 Impact

By purchasing this pre-owned but new-in-box component, you contribute to a circular economy and help avoid 0.03 kg of CO2 emissions associated with the production of a new unit. This is equivalent to the energy needed to charge a smartphone over 3 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'PP' suffix indicates that the linear bearing is equipped with double-sided contact seals. These seals are crucial for protecting the internal ball raceways from contaminants like dust and moisture, while also retaining the factory-applied lubricant, thus extending the service life of the bearing.

For optimal performance and lifespan, the KH08-PP should be used with a hardened and ground precision shaft with a diameter tolerance of h6 (for an 8mm nominal shaft). Using a shaft that is too soft or has an incorrect surface finish will lead to premature wear of both the shaft and the bearing.

While the KH08-PP comes pre-lubricated for life in many applications, it can be re-lubricated if necessary, especially in demanding environments. Re-lubrication should be done with a high-quality grease compatible with rolling bearings. However, due to the integrated seals, care must be taken to ensure the grease properly reaches the ball circuits.
